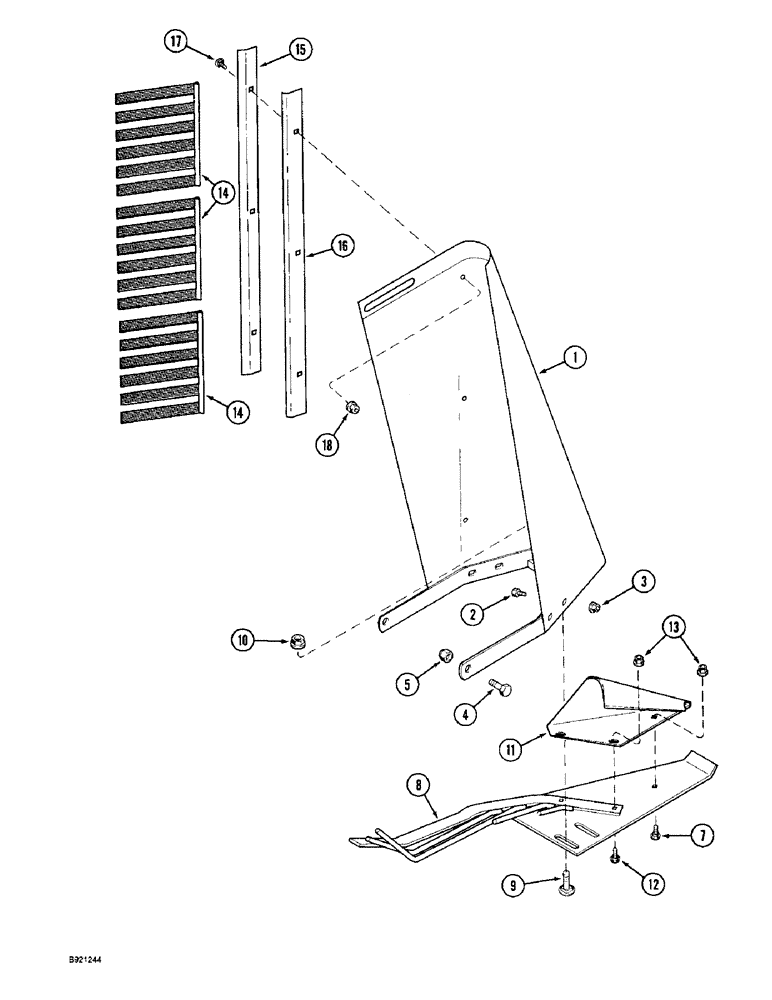

Запчасти Case IH 1800 (9A-08) - PLANT LIFTER (13) - PICKING SYSTEM

1

219569C2

GUIDE

- right-hand

1шт.

1

219568C2

GUIDE

- left-hand, not shown

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

5

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

8

222186C3

TAPPET

LIFTER - plant, right-hand

1шт.

8

222185C3

TAPPET

LIFTER - plant, left-hand, not shown

1шт.

9

412-820

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/4", Gr 2

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 2

4шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

11

669374R2

SHEET

- extension

1шт.

11

669373R2

SHEET

- extension

1шт.

12

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

14

219628C1

BRUSH, COMMUTATOR

BRUSH - unit cotton retainer

6шт.

15

219717C2

SUPPORT

- short

2шт.

16

219718C2

SUPPORT

- long

2шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

6шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.
