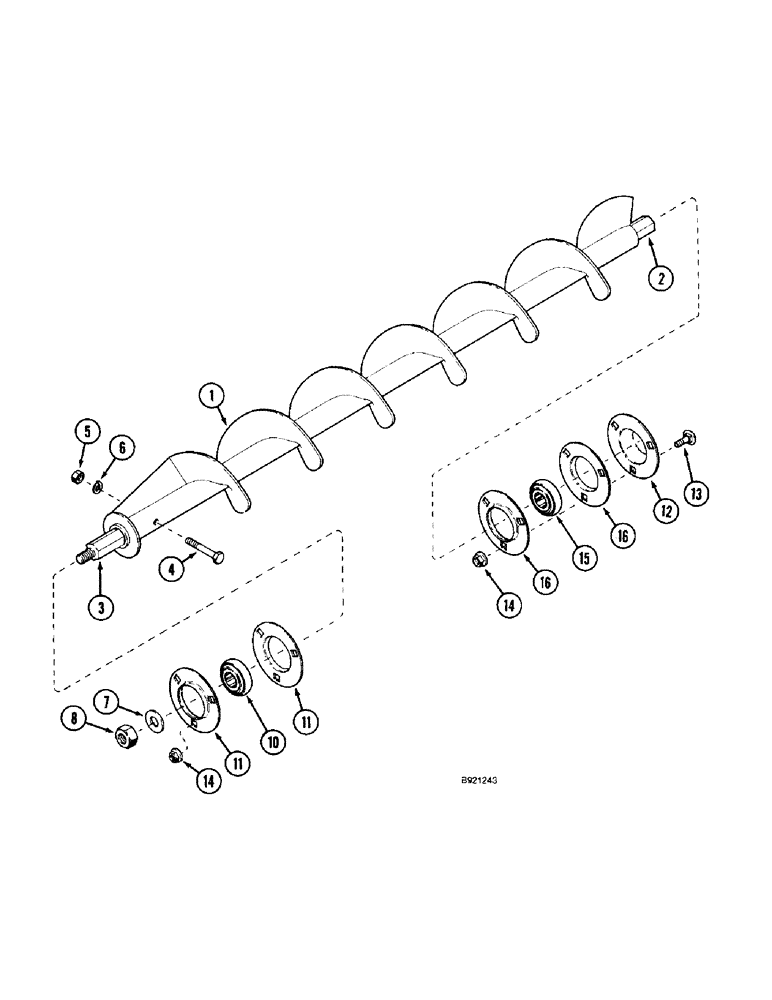

Запчасти Case IH 1800 (9A-06) - SIDE AUGER (13) - PICKING SYSTEM

1

217408C1

AUGER

ASSEMBLY - side, right-hand

1шт.

1

217407C1

AUGER

ASSEMBLY - side, left-hand, not shown

1шт.

2

217412C1

BAR

- rear

1шт.

3

217413C1

BAR

- front

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 15/64 inch

2шт.

8

230-41110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

4шт.

10

1994738C1

BEARING ASSY,1.001" ID x 2.44" OD x 0.63"

BEARING - front

2шт.

11

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing (Replaces flange 565631R1)

2шт.

12

219547C1

FLANGE

COVER - bearing housing

2шт.

13

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch, grade 2

6шт.

14

231-5146

FLANGE NUT,3/8"-16

6шт.

15

211587C91

BALL BEARING,1.586" ID x 62 mm OD x 24 mm

BEARING - ball, side auger, rear

2шт.

16

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing (Replaces flange 565631R1)

4шт.
