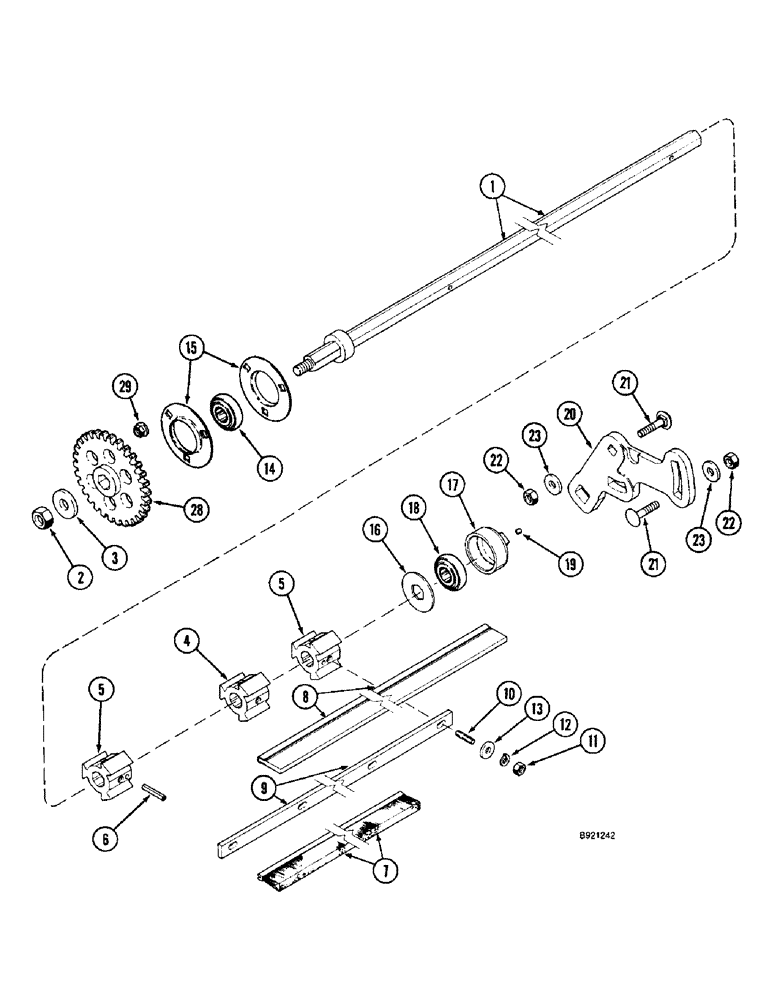

Запчасти Case IH 1800 (9A-04) - BRUSH ROLL (13) - PICKING SYSTEM

1

217416C1

BAR

- brush roll, short

2шт.

2

230-41110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

2шт.

3

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 15/64 inch

2шт.

4

1251406C1

SUPPORT

- flap and brush

10шт.

5

217415C1

SUPPORT

- flap and brush

4шт.

6

38-12032

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

4шт.

7

217420C1

BRUSH

- stripper

12шт.

8

217421C1

FLAP

- stripper brush

6шт.

9

222454C1

BAR

- retainer

6шт.

10

1260565C1

STUD

- 3/8 x 1-37/64 inch

42шт.

11

425-106

NUT,3/8"-16, Cl 5

42шт.

12

492-11038

LOCK WASHER,3/8"

42шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

42шт.

14

211587C91

BALL BEARING,1.586" ID x 62 mm OD x 24 mm

BEARING - ball, brush roll, rear

2шт.

15

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing (Replaces flange 565631R1)

4шт.

16

203387C1

WASHER

- lower

2шт.

17

203388C1

HOUSING

- brush roll, front

2шт.

18

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING - ball, brush roll, front

2шт.

19

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 444687)

2шт.

20

203391C1

BRACE

- roll pivot, right-hand

1шт.

20

203390C1

BRACE

- roll pivot, left-hand, not shown

1шт.

21

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

BOLT - carriage, 5/8 NC x 1-1/2 inch

6шт.

22

230-41110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

6шт.

23

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

6шт.

28

217423C1

PINION

GEAR - brush roll

2шт.

29

231-5146

FLANGE NUT,3/8"-16

1шт.
