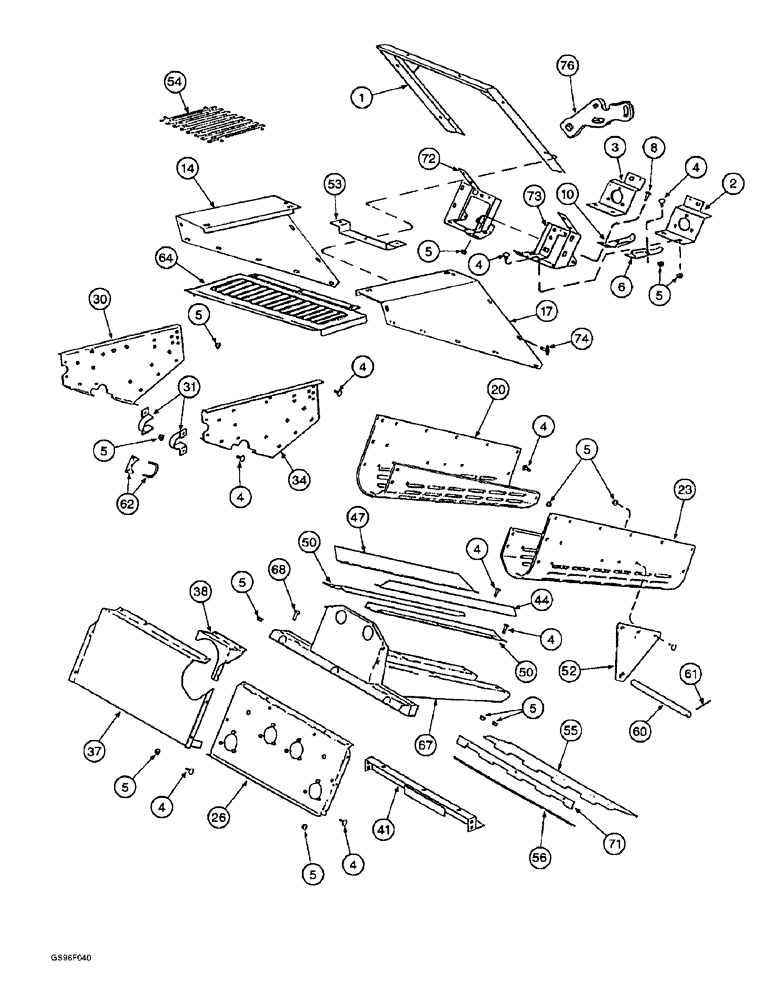

Запчасти Case IH 1800 (9A-03A) - BRUSH ROLL FRAME, LOW PROFILE (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
1
1541379C1
FRAME
- front
1шт.
2
1541373C1
SHEET
- bearing support, right-hand
1шт.
3
1541374C1
SHEET
- bearing support, left-hand
1шт.
4
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT - carriage, 3/8 NC x 3/4 inch
1шт.
5
231-5146
FLANGE NUT,3/8"-16
1шт.
6
203324C1
SHEET
- skid shoe, left-hand
1шт.
8
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC x 1 inch
2шт.
10
203325C1
SHEET
- skid shoe, right-hand
1шт.
14
1541392C1
SHIELD
SECTION - side, left-hand, includes decal
1шт.
17
1541393C1
SHIELD
SECTION - side, right-hand
1шт.
20
1999044C1
HOUSING
- auger, left-hand
1шт.
23
1999045C1
HOUSING
- auger, right-hand
1шт.
26
1251520C1
SUPPORT
- rear bearing
1шт.
30
1541385C1
SUPPORT
PLATE - left-hand
1шт.
31
220730C2
CLEVIS
BEARING - clevis
2шт.
34
1541386C1
SUPPORT
PLATE - right-hand
1шт.
37
1999036C1
SHEET
SHIELD - gear
1шт.
38
1999065C1
SHIELD
- gear
1шт.
41
1541369C1
SUPPORT
- rear side shield
1шт.
44
217389C1
SUPPORT
- outer retainer, right-hand
1шт.
47
217388C1
SUPPORT
- outer retainer, left-hand
1шт.
50
217390C1
SUPPORT
- retainer, inner
2шт.
52
217893C1
SUPPORT
- cylinder pin, outer
1шт.
53
217887C1
STRAP
- grate support
2шт.
54
1541377C1
GRATE
- unit
1шт.
55
1999046C1
SHIELD
SECTION - auger housing flap
1шт.
56
1251513C1
ROD
- auger housing hinge
1шт.
60
217895C1
PIN
- hydraulic cylinder
1шт.
61
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1-1/2"
2шт.
62
163071H1
CLAMP
- 2 inch
2шт.
64
1541423C1
COVER
- top row unit
1шт.
65
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC x 1 inch
2шт.
67
1251527C1
SUPPORT
- frame
1шт.
68
413-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- hex, 3/8 NC x 2-3/4 inch
2шт.
71
1251514C2
HINGE
- auger housing
1шт.
72
1541397C1
SUPPORT
- post, left-hand
1шт.
73
1541398C1
SUPPORT
- post, right-hand
1шт.
74
1998980C1
BOLT (MACHINE),Wing, 1/8" x 1"
BOLT - special, ling, 5/16 inch NC
6шт.
75
1541372C1
ROCKSHAFT
- height control
1шт.
76
1541410C1
BRACE
- roll pivot
2шт.
Выбрано товаров: 40
