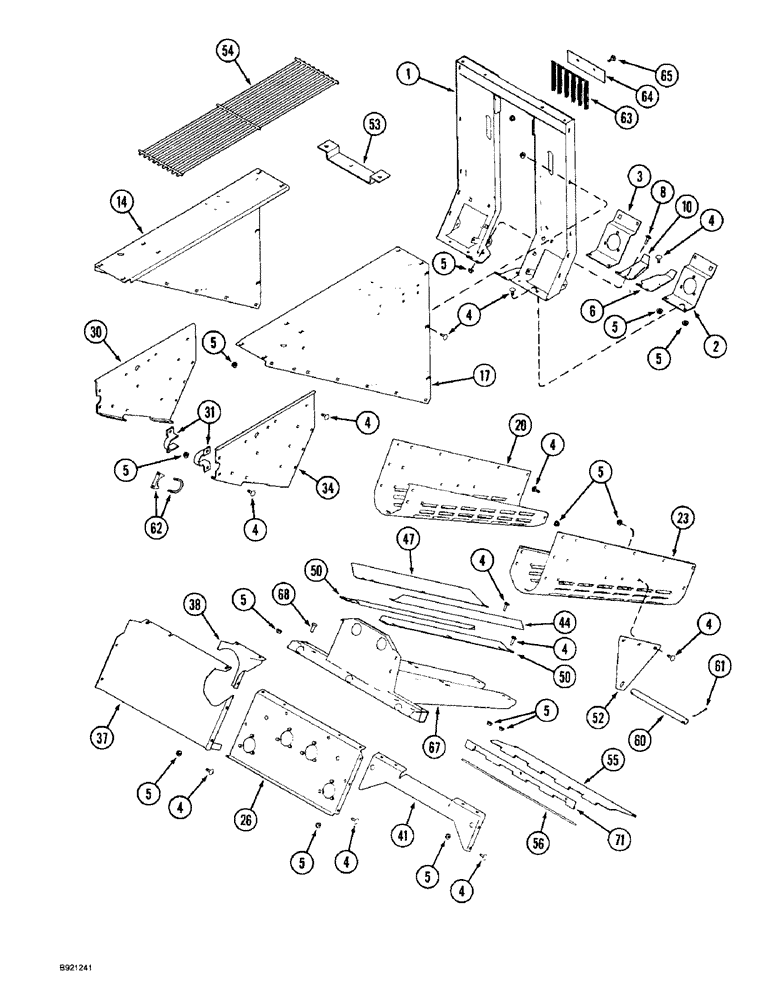

Запчасти Case IH 1800 (9A-02) - BRUSH ROLL FRAME (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
1
217374C1
SUPPORT
- front
1шт.
2
203322C1
SHEET
- bearing support, left-hand
1шт.
3
203323C1
SHEET
- bearing support, right-hand
1шт.
4
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT - carriage, 3/8 NC x 3/4 inch
1шт.
5
231-5146
FLANGE NUT,3/8"-16
1шт.
6
203324C1
SHEET
- skid shoe, left-hand
1шт.
8
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC x 1 inch
2шт.
10
203325C1
SHEET
- skid shoe, right-hand
1шт.
14
1999038C1
SHIELD
SECTION - side, left-hand, includes decal
1шт.
17
217383C2
VALVE BLOCK
SECTION - side, right-hand
1шт.
20
1999044C1
HOUSING
- auger, left-hand
1шт.
23
1999045C1
HOUSING
- auger, right-hand
1шт.
26
1251520C1
SUPPORT
- rear bearing
1шт.
30
1999042C1
PLATE
- left-hand
1шт.
31
220730C2
CLEVIS
BEARING - clevis
2шт.
34
1999043C1
PLATE
- right-hand
1шт.
37
1999036C1
SHEET
SHIELD - gear
1шт.
38
1999065C1
SHIELD
- gear
1шт.
41
217386C1
SUPPORT
- top baffle
1шт.
44
217389C1
SUPPORT
- outer retainer, right-hand
1шт.
47
217388C1
SUPPORT
- outer retainer, left-hand
1шт.
50
217390C1
SUPPORT
- retainer, inner
2шт.
52
217893C1
SUPPORT
- cylinder pin, outer
1шт.
53
217887C1
STRAP
- grate support
2шт.
54
1999048C1
GRATE ASSY.
GRATE - unit
1шт.
55
1999046C1
SHIELD
SECTION - auger housing flap
1шт.
56
1251513C1
ROD
- auger housing hinge
1шт.
60
217895C1
PIN
- hydraulic cylinder
1шт.
61
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1-1/2"
2шт.
62
163071H1
CLAMP
- 2 inch
2шт.
63
219628C1
BRUSH, COMMUTATOR
BRUSH - unit cotton retainer
1шт.
64
1251208C1
BAR
PLATE - brush retainer
1шт.
65
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC x 1 inch
2шт.
67
1251527C1
SUPPORT
- frame
1шт.
68
413-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- hex, 3/8 NC x 2-3/4 inch
2шт.
71
1251514C2
HINGE
- auger housing
1шт.
Выбрано товаров: 36
