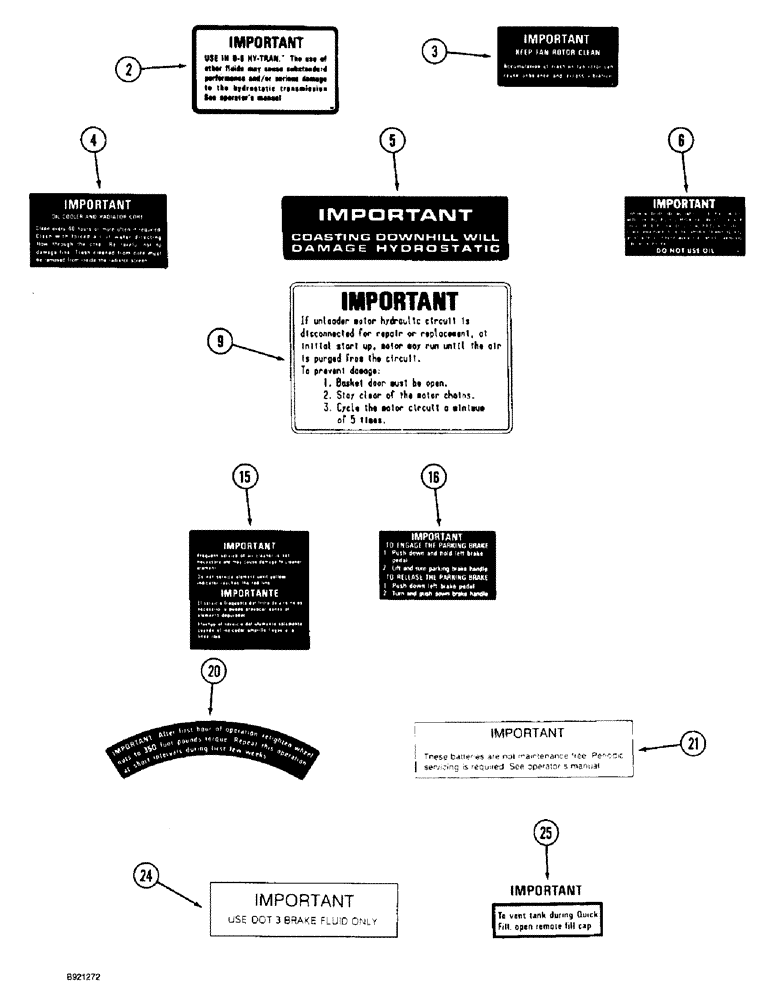

Запчасти Case IH 1800 (9E-32) - DECALS, IMPORTANT INSTRUCTIONS (12) - CHASSIS

2

113751C1

IMPORTANT DECAL

DECAL - Important, Hy-Tran fluid

1шт.

2

114053C1

DECAL

- Important, Hy-Tran fluid, Spanish, not shown

1шт.

3

216457C2

DECAL

- Important, keep fan rotor clean

2шт.

3

222811C1

DECAL

- Important, keep fan rotor clean, Spanish, not shown

2шт.

4

203855C1

DECAL

- Important, oil cooler and radiator core

1шт.

4

222826C1

DECAL

- Important, oil cooler and radiator core, Spanish, not shown

1шт.

5

173094C1

DECAL

- Important, coasting

1шт.

5

1300279C1

DECAL

- Important, coasting, Spanish, not shown

1шт.

6

2752897R1

DECAL

- Important, dry air cleaner

1шт.

6

2752905R1

DECAL

- Important, dry air cleaner, Spanish, not shown

1шт.

9

87491C1

DECAL

- Important, unloader motor

1шт.

9

1339236C1

DECAL

- Important, unloader motor, Spanish, not shown

1шт.

15

1322909C1

DECAL

- Important, air cleaner

1шт.

16

1329355C1

DECAL

- Important, parking brake

1шт.

16

1339248C1

DECAL

- Important, parking brake, Spanish, not shown

1шт.

20

1970399C2

DECAL

- Important, after first hour of operation, retighten wheel nuts to 350 foot pounds torque (Replaces decal 1970399C1 )

2шт.

20

1970416C2

DECAL

- Important, after first hour of operation, retighten wheel nuts to 350 foot pound torque, Spanish, not shown (Replaces decal 1970416C1 )

2шт.

21

1338853C1

DECAL

- Important, battery maintenance

1шт.

24

1347067C1

DECAL

- Important, DOT 3 brake fluid

1шт.

25

1990369C1

DECAL

- Important, quick fill

1шт.
