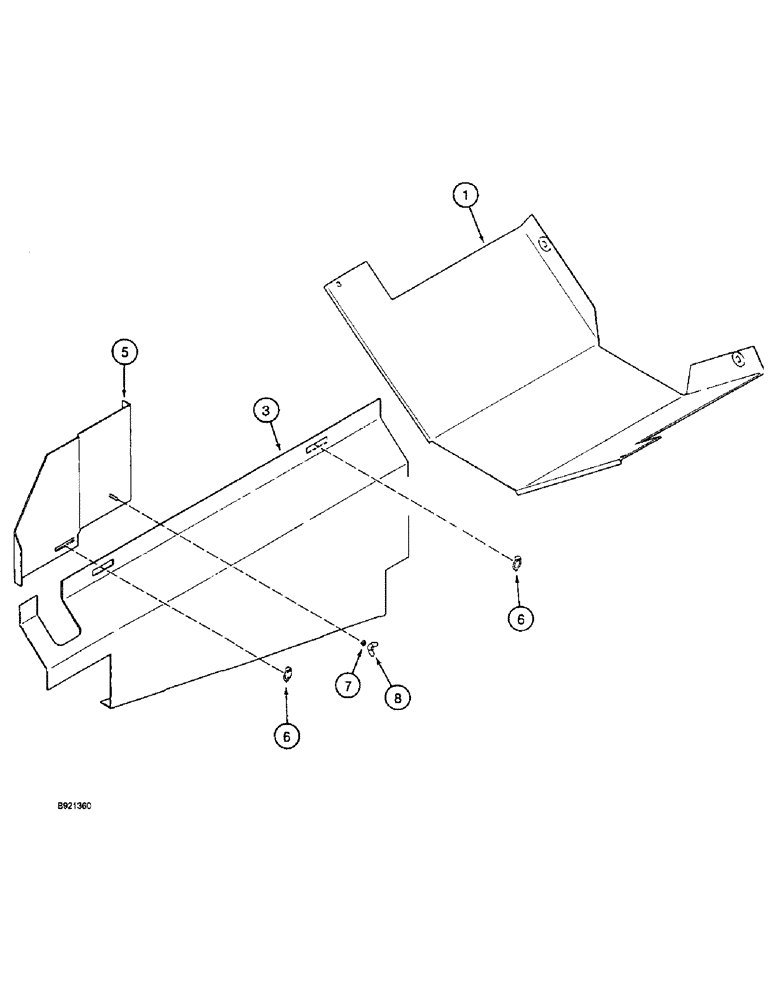

Запчасти Case IH 1800 (9E-26) - PLANT GUARD (12) - CHASSIS

1

1338795C1

DEFLECTOR

PLATE - deflector, fan

1шт.

2

1990163C3

GUARD

SHIELD - mud, left-hand, not shown

1шт.

3

1990164C2

GUARD

SHIELD - mud, right-hand

1шт.

4

1990178C1

GUARD

SHIELD - mud upper, left-hand, not shown

1шт.

5

1990180C1

GUARD

SHIELD - mud upper, right-hand

1шт.

6

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

4шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

126177

WING NUT

NUT - wing, 1/4 inch NC

2шт.
