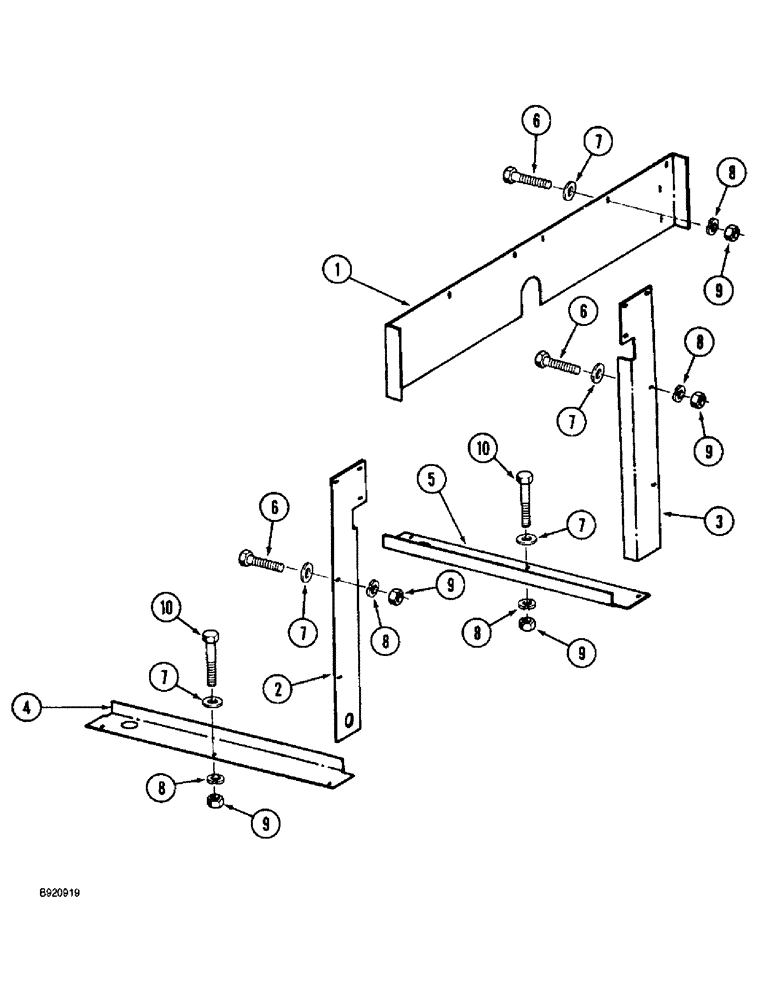

Запчасти Case IH 1800 (9E-22) - FUEL TANK SHIELDS (12) - CHASSIS

1

1278728C1

COVER

- fuel tank upper

1шт.

2

1278729C2

COVER

- fuel tank side, left-hand (Replaces cover 1278729C1)

1шт.

3

1278730C2

COVER

- fuel tank side, right-hand (Replaces cover 1278730C1)

1шт.

4

1278522C1

SHEET

FILLER - fuel tank end, left-hand

1шт.

5

1285410C3

SUPPORT

FILLER - fuel tank end, right-hand

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

10шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

26шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

16шт.

10

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

6шт.
