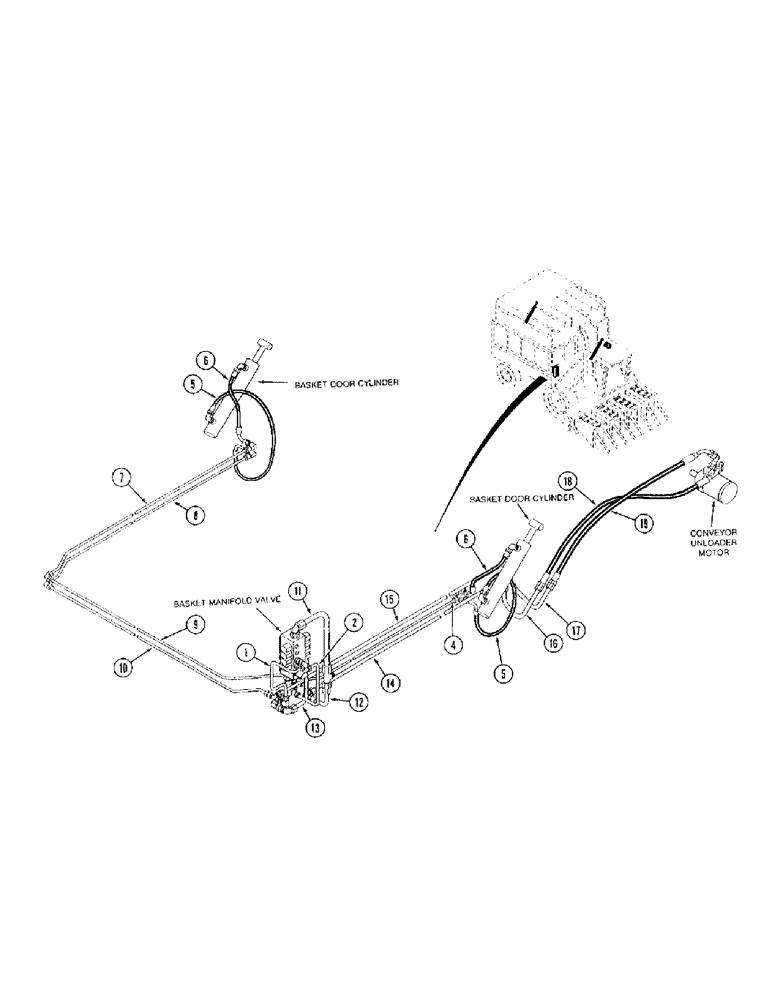

Запчасти Case IH 1800 (1-20) - PICTORIAL INDEX, BASKET DOOR AND CONVEYOR UNLOADER HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Door Open Tube, Page 8-84

1шт.

2

Door Close Tube, Page 8-84

1шт.

4

Door Close Front Tube, Page 8-84

1шт.

5

Door Close Hose, Page 8-84

1шт.

6

Door Open Hose, Page 8-84

1шт.

7

Door Open Rear Tube, Page 8-84

1шт.

8

Door Close Rear Tube, Page 8-84

1шт.

9

Door Open Right-Hand Tube, Page 8-84

1шт.

10

Door Close Right-Hand Tube, Page 8-84

1шт.

11

Basket Valve Tank Tube, Page 8-80

1шт.

12

Motor Return Tube, Page 8-80

1шт.

13

Motor Supply Tube, Page 8-80

1шт.

14

Motor Return Tube, Page 8-80

1шт.

15

Motor Supply Tube, Page 8-80

1шт.

16

Motor Return Tube, Page 8-80

1шт.

17

Motor Supply Tube, Page 8-80

1шт.

18

Motor Return Hose, Page 8-80

1шт.

19

Motor Supply Hose, Page 8-80

1шт.
