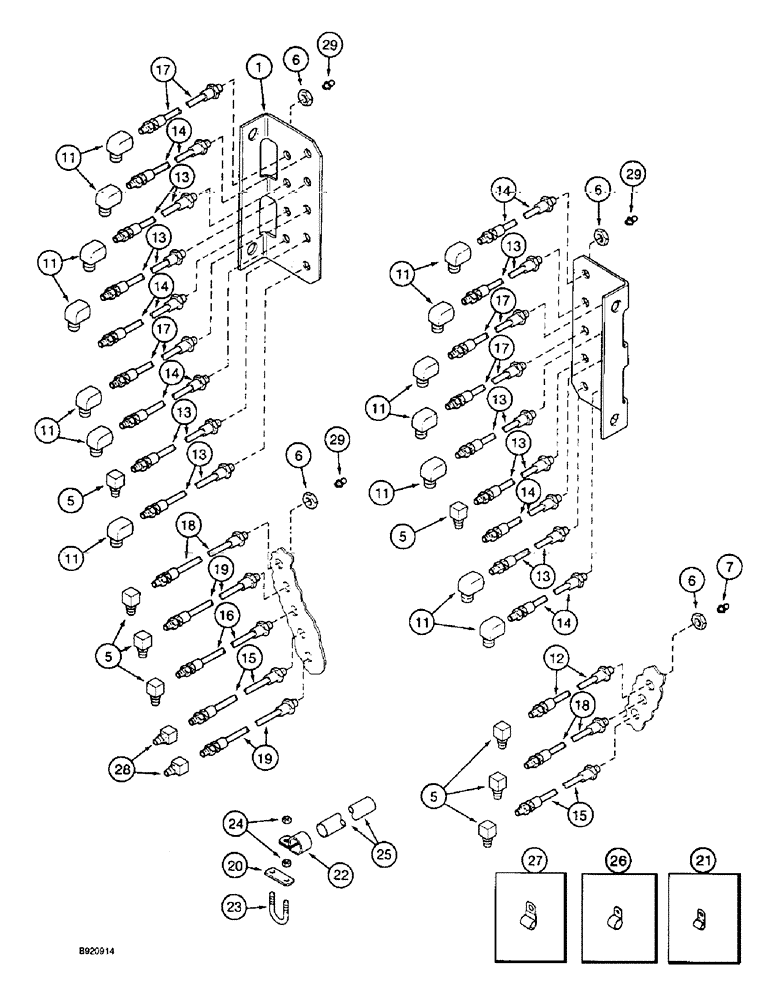

Запчасти Case IH 1800 (9E-14) - CHASSIS GREASE SYSTEM (12) - CHASSIS

1

1345099C1

SUPPORT

- grease fitting

2шт.

5

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree, special (Replaces fitting 21340R1 )

3шт.

6

F53473

LOCK NUT,1/8-27 NPSM

- special, 1/8 inch PT

9-17шт.

11

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street (Replaces elbow 9409931 ) 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

12шт.

13

1345098C1

HOSE

- grease, 60 inch (1524 mm) long

2-4шт.

14

1345096C1

TUBE

- grease, 23 inch (584 mm) long, if used

6шт.

15

937782R92

HOSE,3.02mm ID x 787mm L

Grease 3.56 mm ID x 787.00 mm

1шт.

16

937781R92

HOSE,3.02mm ID x 686mm L

Grease, If Used 3.56 mm ID x 686.00 mm

1шт.

17

1345097C1

HOSE

- grease, 45 inch (1143 mm) long

4шт.

18

1339006C1

TUBE,914 mm L

HOSE - grease, 36 inch (914 mm) long

1шт.

19

1339231C1

TUBE,737 mm Length

HOSE - grease, 29 inch (737 mm) long

1-2шт.

20

1345095C1

LARGE PLATE

STRAP - retaining, if used

4шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, if used

2шт.

22

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type, if used 1 1/4", Insul, 7/16" Bolt

4шт.

23

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

- special, 3/8 inch NC, if used

4шт.

24

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

16шт.

25

1212902C1

INSULATOR

CONDUIT - 24 inch (610 mm) long, cut from bulk conduit 196249A1 below

2шт.

26

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type, If used 3/4", Insul, 1/2" Bolt

2шт.

27

362666R1

CLIP

CLAMP - retaining, if used

4шт.

28

219-418

ADAPTER,1/4"-1/8 NPTF

FITTING - grease, straight, 1/8 inch female PT x 1/4-28 inch taper (Replaces fitting 21450R1 )

2шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

9-17шт.

196249A1

CONDUIT

- bulk, 39-1/2 inch (1000 mm) long

1шт.
