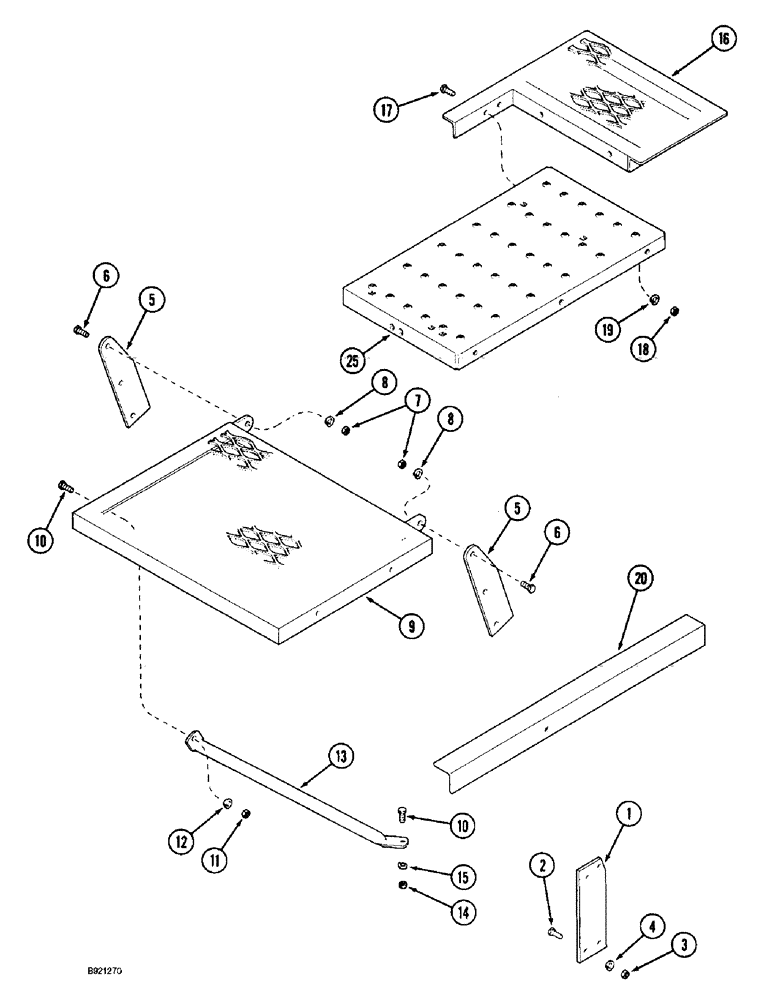

Запчасти Case IH 1800 (9E-12) - UPPER PLATFORM (12) - CHASSIS

1

1541017C1

SUPPORT

- upper ladder

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

3

425-106

NUT,3/8"-16, Cl 5

6шт.

4

492-11038

LOCK WASHER,3/8"

6шт.

5

1541018C1

BRACKET

- top ladder

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

7

425-106

NUT,3/8"-16, Cl 5

6шт.

8

492-11038

LOCK WASHER,3/8"

6шт.

9

1541000C1

PLATFORM

- upper ladder

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

1541011C1

BRACE

- upper platform

1шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

1541005C1

PLATFORM

- upper extension

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

1541016C1

SUPPORT

- basket ladder

1шт.

25

1278720C4

PLATFORM

- upper ladder (Replaces platform 1278720C3)

1шт.
