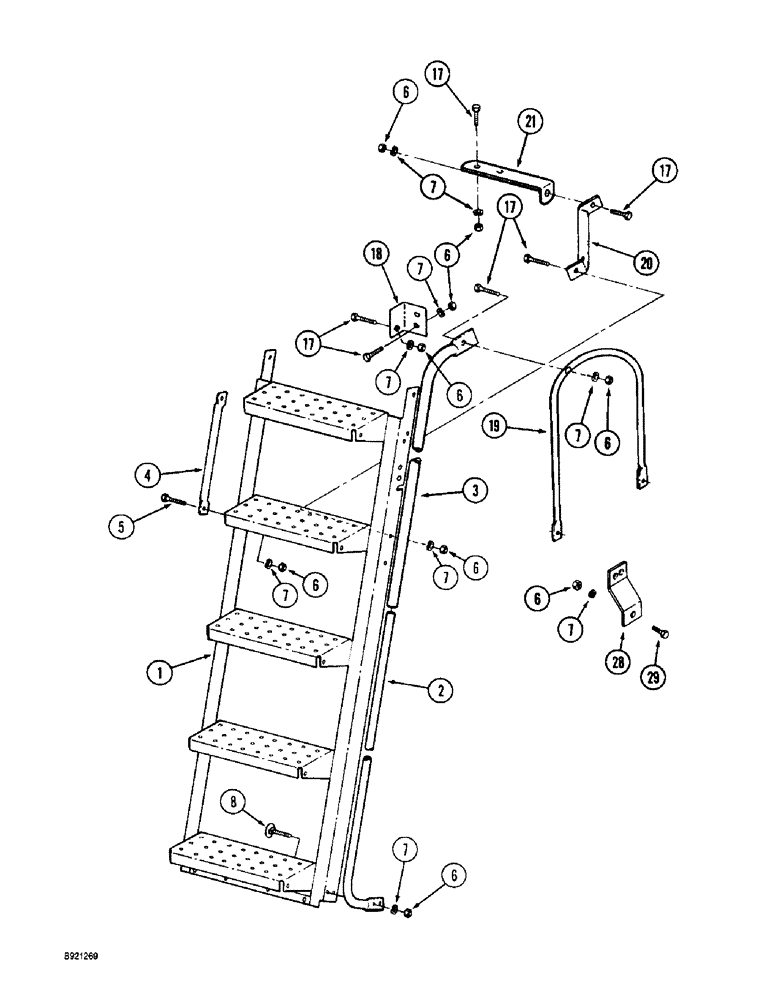

Запчасти Case IH 1800 (9E-10) - UPPER LADDER (12) - CHASSIS

1

1278706C5

LADDER

- operators

1шт.

2

1278711C1

RAIL

- ladder, inner

1шт.

3

86840C1

RAIL ASSY.

RAIL - ladder, outer

1шт.

4

1285388C1

SUPPORT

RAIL - hand

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

6

425-106

NUT,3/8"-16, Cl 5

20шт.

7

492-11038

LOCK WASHER,3/8"

20шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

7шт.

18

1278726C1

SUPPORT

BRACKET - platform

1шт.

19

87138C1

RAIL ASSY.

RAIL - hand

1шт.

20

1338912C1

SUPPORT TUBE

BRACKET - ladder support

1шт.

21

87467C1

SUPPORT

BRACKET - ladder support

1шт.

28

1338921C2

GUSSET

BRACKET - ladder support

1шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.
