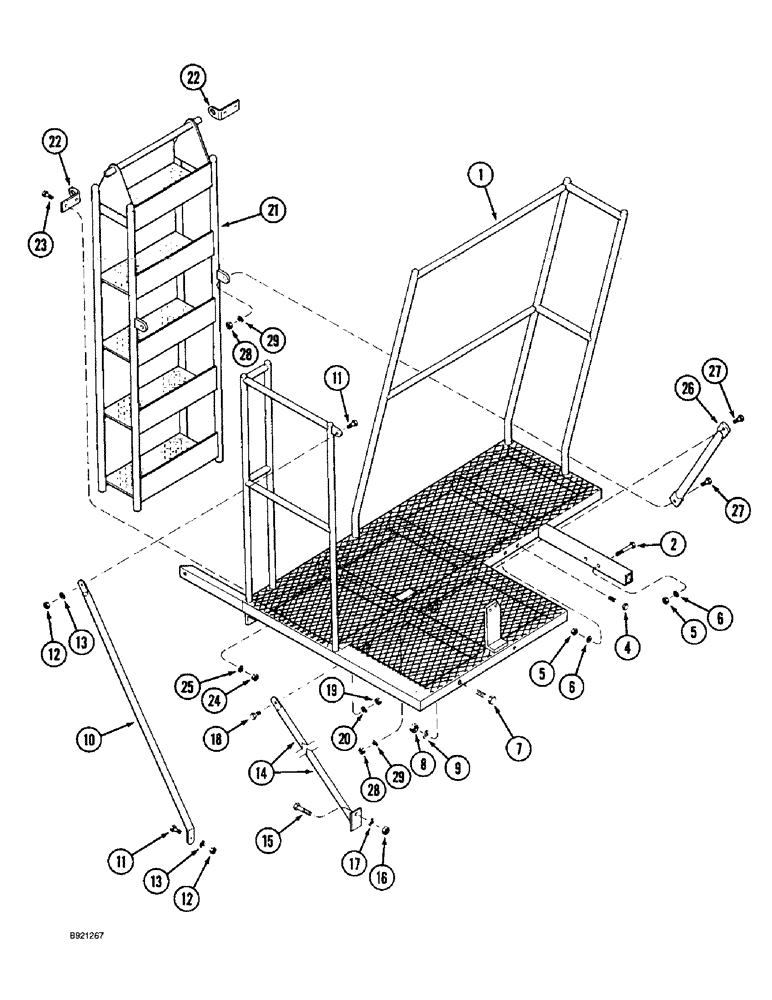

Запчасти Case IH 1800 (9E-06) - ACCESS LADDER AND PLATFORM (12) - CHASSIS

1

1998931C1

PLATFORM

- harvester

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

4

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

5

425-106

NUT,3/8"-16, Cl 5

7шт.

6

492-11038

LOCK WASHER,3/8"

7шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

8

425-168

NUT,1/2"-13, G5, Hvy

- hex, 1/2 inch NC

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

1541012C1

BRACE

- platform, upper

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

1541013C1

BRACE

- platform, lower

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

16

425-168

NUT,1/2"-13, G5, Hvy

- hex, 1/2 inch NC

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

1998949C1

STEP

LADDER - platform access

1шт.

22

1998955C1

BRACKET

- ladder mount

2шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

24

425-106

NUT,3/8"-16, Cl 5

4шт.

25

492-11038

LOCK WASHER,3/8"

4шт.

26

1999002C1

BRACE

- ladder

2шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

28

425-106

NUT,3/8"-16, Cl 5

4шт.

29

492-11038

LOCK WASHER,3/8"

4шт.
