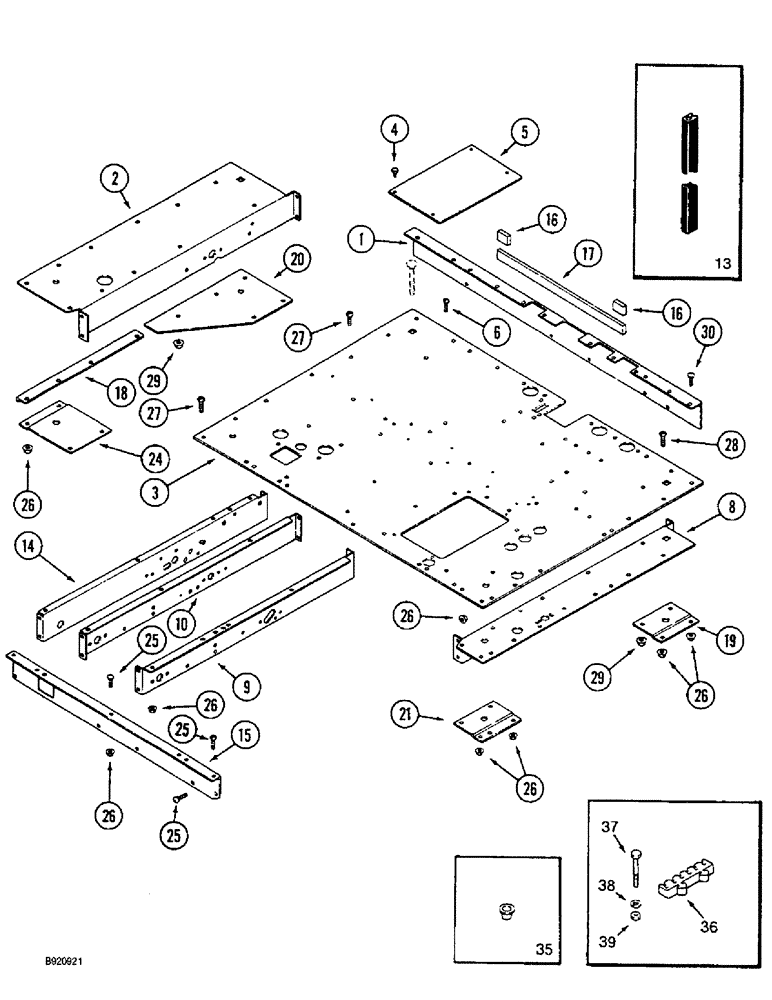

Запчасти Case IH 1800 (9E-04) - OPERATORS PLATFORM (12) - CHASSIS

1

1327564C2

SUPPORT

- operators platform, front

1шт.

2

195520C3

SUPPORT

- operators platform, left-hand

1шт.

3

1321937C4

PLATFORM

- operators

1шт.

4

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

4шт.

5

193029C2

PLATE

- brake access rear

1шт.

6

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

11шт.

8

195518C8

SUPPORT

- operators platform, right-hand

1шт.

9

195519C6

SUPPORT

- operators platform, right-hand center

1шт.

10

195521C4

SUPPORT

- operators platform, center

1шт.

13

NSS

NOT SOLD SEPARAT

STRIP - edge, 12-5/16 inch (312 mm) long, cut from bulk seal 1330108CX below

2шт.

14

195557C7

SUPPORT

- operators platform, left-hand center

1шт.

15

195516C4

SUPPORT

- operators platform, rear

1шт.

16

187884C1

SEALING STRIP,50mm L

- cab sill to front support seal, 2 inch (51 mm) long, cut from bulk seal 87281C1 below

1шт.

16

187885C1

SEALING STRIP

- cab sill to front support seal, 26-1/8 inch (664 mm) long, cut from bulk seal 87281C1 below

1шт.

18

183680C1

ANGLE

- stiffener, left-hand

1шт.

19

183668C2

PLATE

- platform, right-hand, front

1шт.

20

183669C2

PLATE

- platform, left-hand, front

1шт.

21

183678C1

PLATE

- platform, right-hand, rear

1шт.

24

183679C1

PLATE

- platform, left-hand, rear

1шт.

25

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

20шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

33шт.

27

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

29

231-5146

FLANGE NUT,3/8"-16

7шт.

30

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

35

1345350C1

PLUG,Cap, .366" OD

- 13/32 inch diameter hole, platform plate

2шт.

36

3102155R1

HOLDER

- shear bolt

1шт.

37

424-432

BOLT,Hex, 1/4" - 20 x 2", Gr 2

- hex, 1/4 NC x 2 inch, grade 2

3шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

39

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.

87281C1

RUBBER STRIP,38mm W x 749mm L x 19mm Thk

- bulk, 600 inch (15240 mm) long

1шт.

28

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

6шт.
