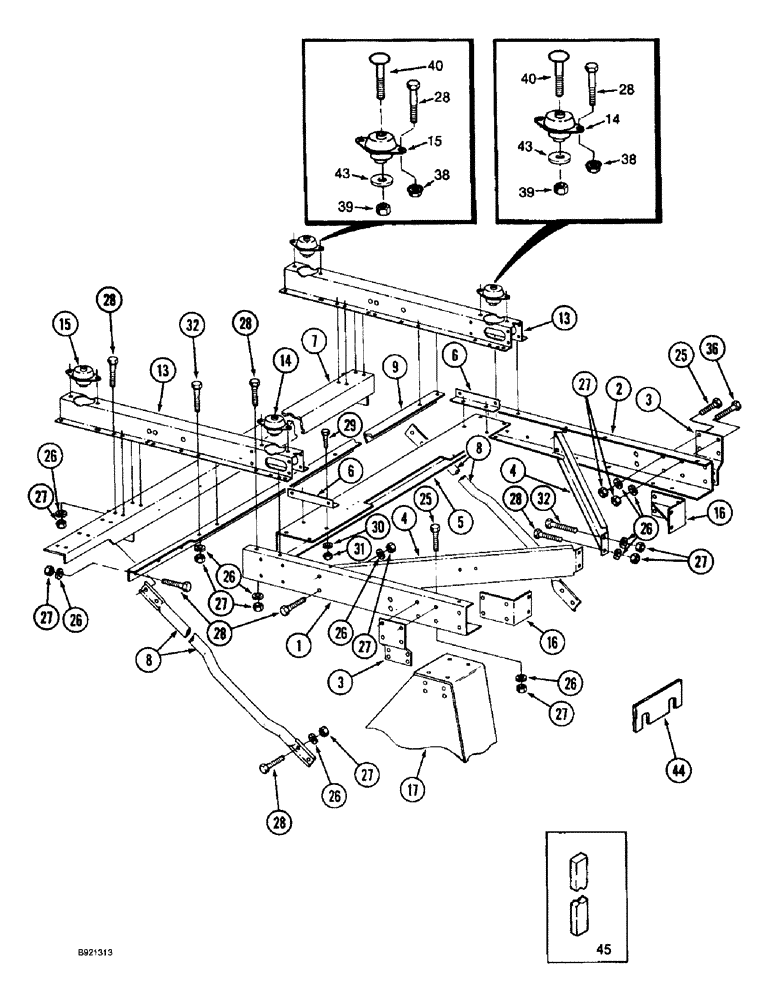

Запчасти Case IH 1800 (9E-02) - MAIN FRAME AND PLATFORM SUPPORT (12) - CHASSIS

1

1270201C3

SUPPORT

CHANNEL - main cab support, left-hand

1шт.

2

1270202C3

SUPPORT

CHANNEL - main cab support, right-hand

1шт.

3

1278398C1

SUPPORT

- main side channel

2шт.

4

1270232C2

SUPPORT

CHANNEL - bracket support

2шт.

5

1270231C4

SUPPORT

CHANNEL - horizontal cab support

1шт.

6

1270233C2

ANGLE BAR

BRACKET - channel support (Replaces bracket 1270233C1)

2шт.

7

1270283C4

SUPPORT

- front bracket

1шт.

8

1285275C1

SUPPORT

PIPE - cap support

2шт.

9

1270275C2

SUPPORT

- rear bracket

1шт.

10

113-531

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, If used, not shown

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used, Not shown 1/2"

4шт.

13

195507C6

SUPPORT

- operators platform, side

2шт.

14

196950C2

MOUNTING PARTS

INSULATOR - vibration, rear

2шт.

15

117722C4

INSULATOR

- vibration, front

2шт.

16

86867C2

BRACKET

- front mast

2шт.

17

1338801C6

FRAME

- main, includes decals

1шт.

25

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

20шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

77шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

67шт.

28

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

41шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

30

492-11038

LOCK WASHER,3/8"

4шт.

31

425-106

NUT,3/8"-16, Cl 5

4шт.

32

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

36

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

39

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

40

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-3/4 inch

4шт.

43

196591C1

WASHER

- flat, special

4шт.

44

87037C1

BLOCK

SHIM - platform

1шт.

45

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

TRIM - edge, air conditioning, 3 inch (76 mm) long, cut from bulk trim 1330108CX below

1шт.

45

1327979C1

MOLDING

TRIM - edge, lines guard, 6 inch (152 mm) long, cut from bulk trim 1330108CX below

1шт.

45

1545944C1

SEAL

TRIM - edge, channel guard, 5 inch (127 mm) long, cut from bulk trim 1330108CX below

1шт.

1330108CX

SEAL,304.8mm L

TRIM - bulk, edge 600 inch (15240 mm) long

1шт.
