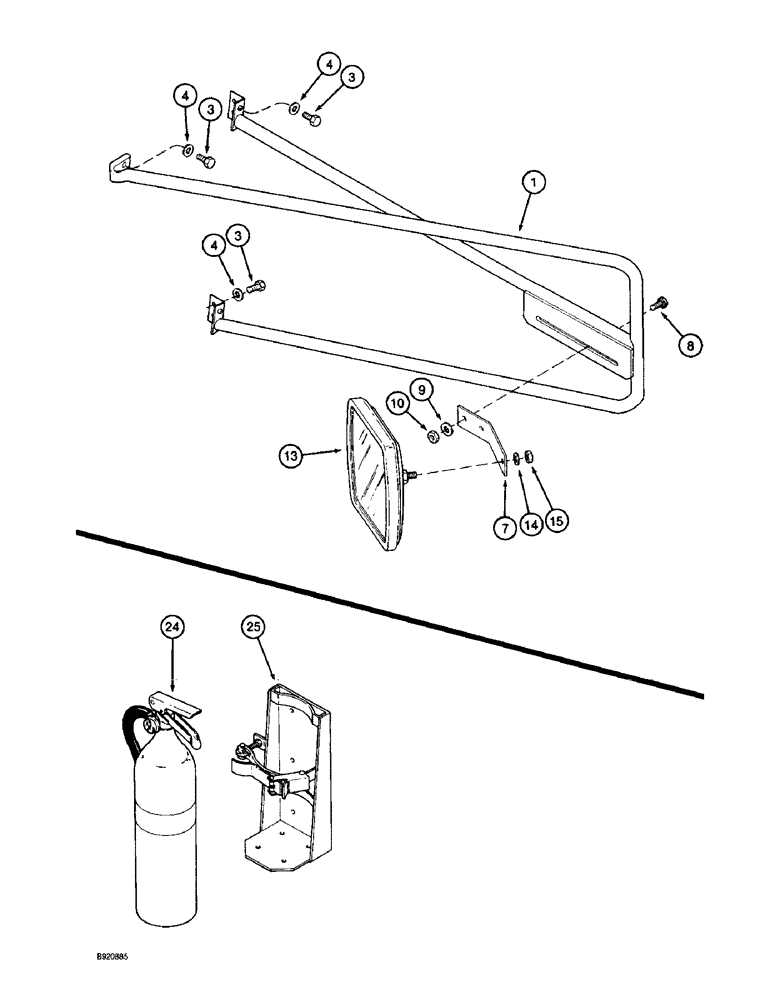

Запчасти Case IH 1800 (9D-36) - MIRROR (10) - CAB & AIR CONDITIONING

1

1285432C1

SUPPORT

- mirror, left-hand

1шт.

1

1285433C1

SUPPORT

- mirror, right-hand

1шт.

3

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

If used Hex, 5/16"-18 x 1", G8, Full Thd

10шт.

3

1990501C1

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, grade 5, polyseal, if used

10шт.

4

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

10шт.

7

1285438C1

ANGLE BAR

ANGLE - mirror

2шт.

8

312-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch, grade 2, if used

4шт.

8

121-231

SERRATED BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex Flg, 3/8"-16 x 1", Serr

4шт.

9

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

10

329-106

NUT,3/8"-16, G8

4шт.

13

1283403C1

MIRROR

- rear view

2шт.

14

892-11010

LOCK WASHER,M10

2шт.

15

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10, If used

2шт.

15

825-51410

FLANGE NUT,M10, Flg Ser

- hex serrated flange, 10 mm - 1.5, if used

2шт.

24

549975C91

FIRE EXTINGUISHER

EXTINGUISHER - fire, ABC dry chemical, 10 pound, parts accessory

1шт.

25

549978C91

BRACKET

- extinguisher mounting, parts accessory FIRE

1шт.
