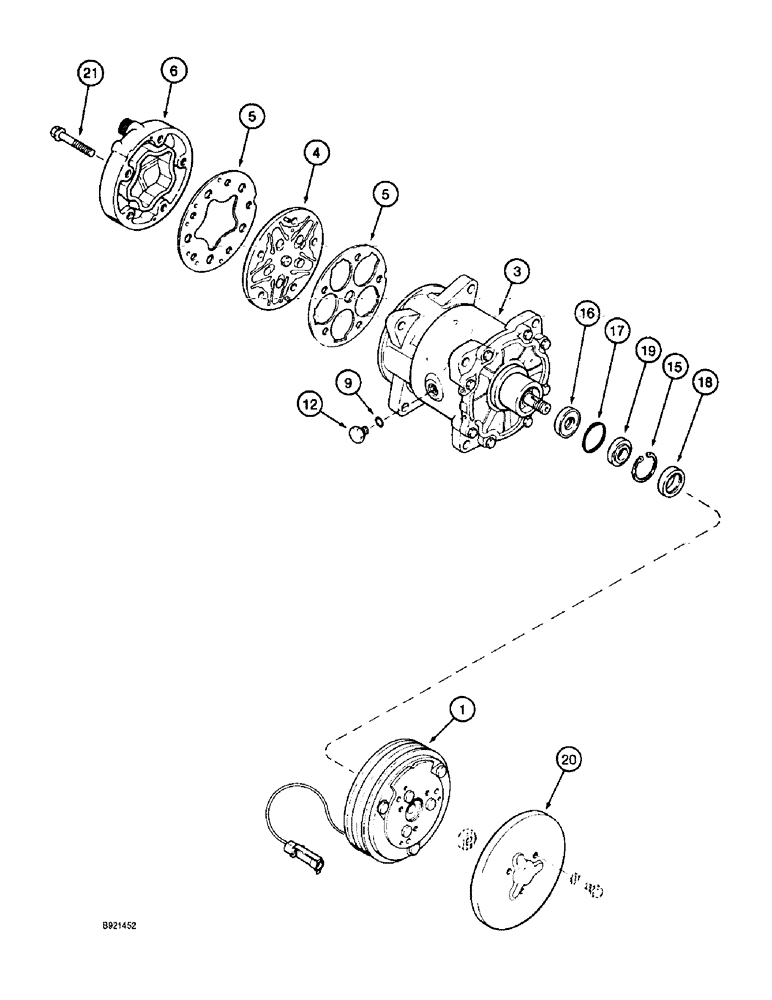

Запчасти Case IH 1800 (9D-34) - COMPRESSOR (10) - CAB & AIR CONDITIONING

1977959C1

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

1800 CASE IH COTTON HARVESTER, COMPRESSOR ASSEMBLY (7/91-)

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

1

1981779C1

CLUTCH ASSEMBLY

CLUTCH - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - compressor, order compressor assembly 1977959C1

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - compressor valve, order compressor assembly 1977959C1

1шт.

5

A49668

GASKET KIT

KIT - gasket, valve plate, set of two

1шт.

6

1958959C1

COVER

HEAD - cylinder

1шт.

9

A49666

O-RING

O-RING - rubber

3шт.

12

A49667

PLUG

PLUG - hex, oil filler

1шт.

13

A49664

CIRCLIP

RING - snap, seal seat

1шт.

A49665

SEAL KIT

KIT - seal

1шт.

15

A49664

CIRCLIP

RING - snap, seal seat

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - shaft, order kit A49665

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - housing, order kit A49665

1шт.

18

NSS

NOT SOLD SEPARAT

RING - felt, order kit A49665

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - seal, shaft, order kit A49665

1шт.

20

1958961C1

COVER

COVER - dust, clutch

1шт.

21

A49669

SCREW,Cylinder

BOLT - hex flange, special

5шт.
