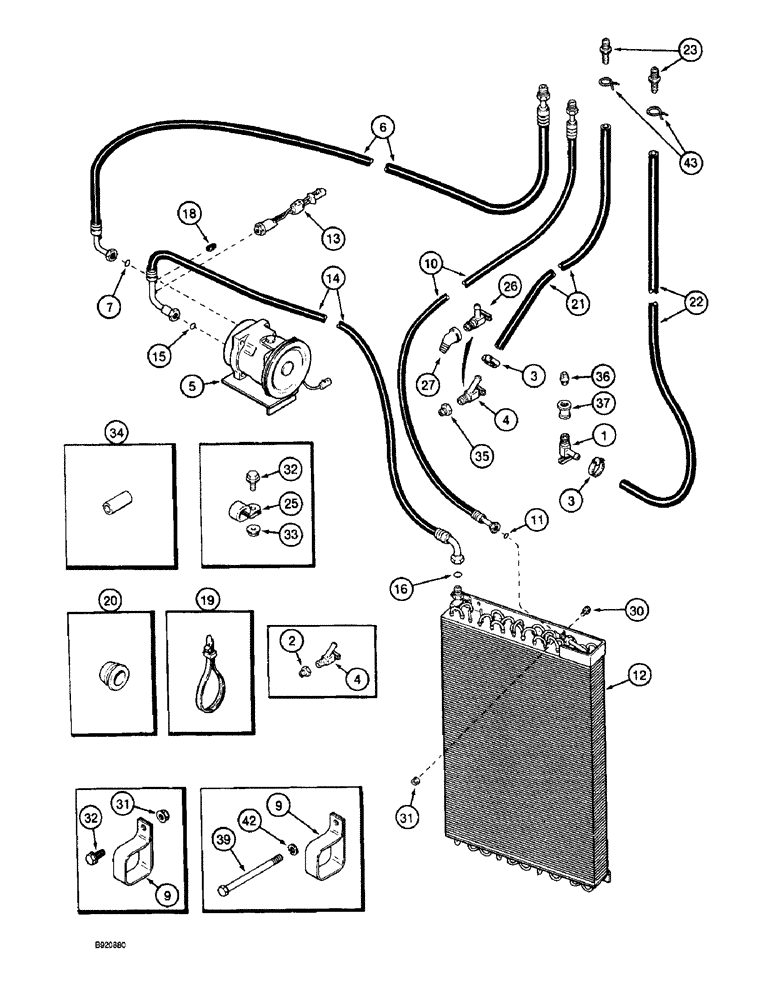

Запчасти Case IH 1800 (9D-28) - HEATER AND AIR CONDITIONING, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - shutoff, 90 degree

1шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

REDUCER, 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable, Heater hose, Special #24

2шт.

4

941980R91

LOCK VALVE

VALVE - heater, 45 degree, if used

1шт.

5

1977959C1

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, parts list page 9D-35

1шт.

5

1977959C1R

REMAN-A/C COMPRESSOR

1800 CASE IH COTTON HARVESTER, COMPRESSOR ASSEMBLY (7/91-)

1шт.

5

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

6

1982311C2

LARGE HOSE

HOSE,LARGE HOSE ASSEMBLY - compressor to cab, 167-5/16 inch (4250 mm) long

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, -015, 70 Duro, .551" ID x .070" Thk

1шт.

9

1301387C2

CLIP

CLAMP - square, 2 inch ID

1шт.

10

1321292C4

HOSE

HOSE ASSEMBLY - condenser to cab, 187 inch (4743 mm) long

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

O-RING, -011, 70 Duro, .301" ID x .070" Thk

1шт.

12

183901C2

CONDENSER

COIL - air conditioner condenser

1шт.

13

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

14

1977857C4

HOSE

HOSE ASSEMBLY - compressor to condenser (Replaces hose assembly 1977857C3 )

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, -015, 70 Duro, .551" ID x .070" Thk

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

18

1250593C1

FITTING

ADAPTER - straight, special, 1/4 inch

2шт.

19

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - tie, 14 inch long (Replaces strap 291207C1 )

1шт.

19

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP STRAP, CABLE, , 3 inch maximum bundle .098" x 8"

1шт.

20

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - 3/4 inch ID, hose

2шт.

20

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - 7/8 inch ID, heater hose

2шт.

20

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - 5/8 inch ID, hose

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater, 130 inch (3302 mm) long, cut from bulk hose 97252CX below

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 177 inch (4496 mm) long, black stripe, cut from bulk hose 97252CX below

1шт.

23

1301342C1

FITTING

ADAPTER - straight, special, heater hose inlet fitting

2шт.

25

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

CLAMP, , P-type (Replaces clamp 299608C1 ) 1 1/4", Insul, 1/2" Bolt

1шт.

26

301803R1

SHUT-OFF VALVE

VALVE - heater, shutoff, if used

1шт.

27

217-18

ELBOW,45 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

ELBOW - street, 45 degree, 3/8 inch PT x female PT, if used

1шт.

30

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

4шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

NUT, Flg, USR, 1/4"-20

4шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

BOLT - hex serrated flange, 5/16 NC x 3/4 inch

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

34

150596C1

SPACER,1/2" Tube x 1 3/16"

SPACER - tubular, 21/64 x 1/2 x 1-13/64 inch

2шт.

35

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

REDUCER - pipe, 3/4 male x 3/8 inch female

1шт.

36

221-187

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE - straight, 1/2 PT x 1-1/2 inch

1шт.

37

221-1349

COUPLING,Pipe, 1/2" x 3/8" NPT

COUPLER - pipe reducer, 1/2 x 3/8 inch

1шт.

39

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

BOLT - hex, 3/8 NC x 4-1/4 inch

1шт.

42

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

43

214-1314

HOSE CLAMP,#14, 7/8", Spring

CLAMP, HOSE, (Replaces clamp 313318R1) #14, 7/8", Spring

2шт.

97252CX

HOSE

HOSE - bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.
