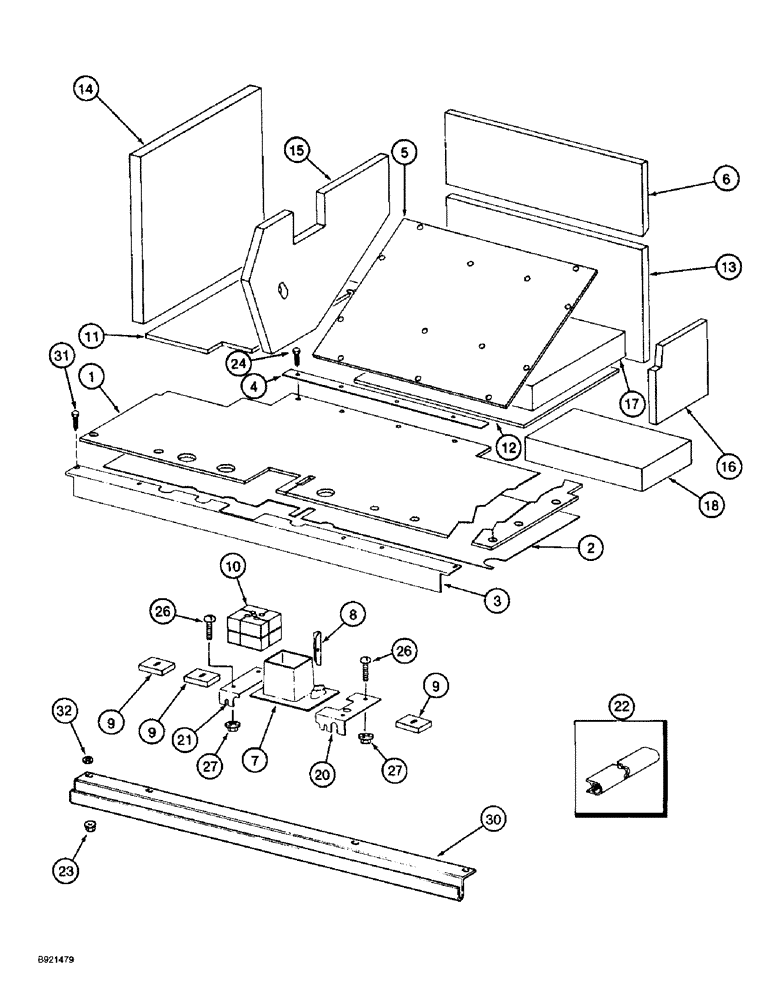

Запчасти Case IH 1800 (9D-18) - CAB, SOUND INSULATION AND FLOOR MATS (10) - CAB & AIR CONDITIONING

1

1278795C3

CARPET

MAT - floor (Replaces floor mat 1278795C2)

1шт.

2

1278796C1

RUBBER INSULATOR

INSULATOR - floor mat sound

1шт.

3

1327603C1

SUPPORT

- floor mat front retainer

1шт.

4

1321953C1

SEALING STRIP

STRIP - hold-down rear

1шт.

5

195542C2

CARPET

MAT - cover center support

1шт.

6

1321285C3

INSULATOR

- foam, center rear support

1шт.

7

198075C1

INSULATOR

PAD - insulation, steering pedestal

1шт.

8

187581C1

ANGLE

- steering pedestal

1шт.

9

1321935C1

SEAL

- pedal

3шт.

10

1327598C1

SEAL

SEAL - steering pedestal

1шт.

11

196587C7

INSULATOR

PAD - insulation, right-hand

1шт.

12

196586C1

SHEET

COVER - floor sound center

1шт.

13

196599C1

LINING

COVER - sound center filler

1шт.

14

1301219C2

SHEET

PAD - insulation, right-hand, console sound, inner

1шт.

15

1301220C2

SHEET

COVER - right-hand, console sound, outer

1шт.

16

196598C2

SHEET

PAD - insulation, left-hand, outer

1шт.

17

196602C1

SHEET

COVER - center sound

1шт.

18

91792C3

SHEET ASSY.

PAD - insulation, manual box

1шт.

20

1327567C1

PLATE

- boot hold-down, left-hand

1шт.

21

1327568C1

PLATE

- boot hold-down, right-hand

1шт.

22

1301236C1

SEALING STRIP

- operator cab to deck, 31 inch (787 mm) long

1шт.

23

231-5146

FLANGE NUT,3/8"-16

5шт.

24

280-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

929460C1

FLUID

ADHESIVE - fluid, 11 oz cartridge, purchase locally

1шт.

30

1338051C1

BRACKET

- hold-down, front

1шт.

31

275-1478

SELF-TAP SCREW,1/4" - 14 x 1/2"

SCREW - hex, self-tapping, 1/4-14 x 1/2 inch

4шт.

32

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.
