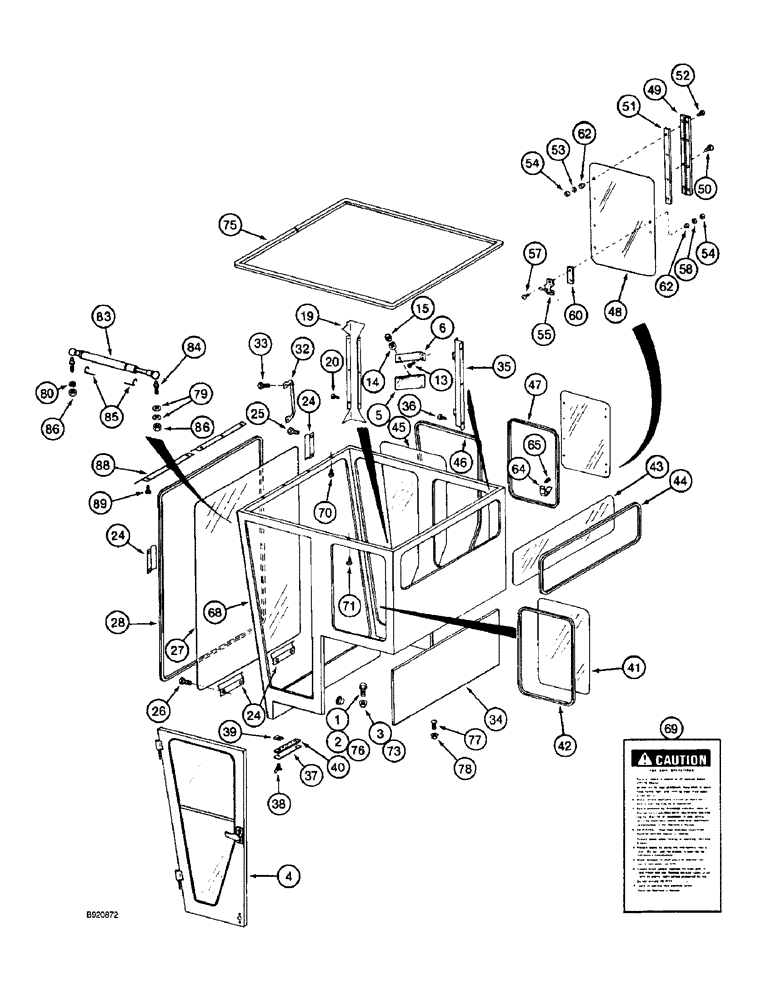

Запчасти Case IH 1800 (9D-10) - CAB, FRAME (10) - CAB & AIR CONDITIONING

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, machinery item, order from Machinery Price List, with heater and air conditioning

1шт.

1

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

8шт.

2

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT - hex flange, polyseal, 3/8 NC x 1-1/4 inch

8шт.

3

1327765C1

LOCK NUT

- hex flange, self-locking, 3/8 inch NC

18шт.

4

REF

INSTRUCTION

DOOR ASSEMBLY - cab, parts list page 9D-15

1шт.

5

A177462

MIRROR

- interior rear view (Replaces mirror 66518C1 )

1шт.

6

1329283C1

ANGLE BAR

BRACKET - mounting

1шт.

13

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted, No. 10 NC x 1/2 inch, polyseal

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

329-105

NUT,5/16"-18, G8

1шт.

19

1276305C1

SUPPORT

- hose cover, left-hand

1шт.

20

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

6шт.

24

196742C3

LARGE PLATE

SUPPORT - windshield retainer

7шт.

25

313-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

26

313-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

27

1957276C1

GLASS

- cab windshield

1шт.

28

NSS

NOT SOLD SEPARAT

STRIP - windshield glass, 225 inch (5715 mm) long

1шт.

32

1321545C1

HANDLE

- grab

1шт.

33

313-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch grade 8

2шт.

34

1321286C3

LINING

SHEET - foam insulation

1шт.

35

1987173C1

PANEL ASSY.

SUPPORT - filler, right-hand

1шт.

36

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

6шт.

37

1301129C1

DOOR

- clean out

1шт.

38

377363R2

THUMB SCREW,1/4" - 20 x 3/4"

- clean out cover

2шт.

39

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

- U-type, 1/4 inch NC

2шт.

40

NSS

NOT SOLD SEPARAT

STRIP - clean out door seal, 9-11/16 inch (246 mm) long

1шт.

41

198244C1

GLASS

- left-hand rear

1шт.

42

NSS

NOT SOLD SEPARAT

STRIP - cab left-hand rear glass, 87 inch (2210 mm) long

1шт.

43

198247C1

GLASS

- cab rear

1шт.

44

NSS

NOT SOLD SEPARAT

STRIP - cab rear glass, 123 inch (3124 mm) long

1шт.

45

198184C1

GLASS

- cab, right-hand front

1шт.

46

NSS

NOT SOLD SEPARAT

STRIP - cab right-hand front glass, 130 inch (3302 mm) long

1шт.

47

109594C1

SEAL

- weather, right-hand rear window, 88 inch (2235 mm) long, cut from bulk seal 1263038C1, see page 9D-13

1шт.

53

495-31022

WASHER,#10

4шт.

54

196922C1

LOCK NUT

- hex, self-locking, No. 10, window lock

8шт.

55

170404C1

HANDLE

- right-hand rear window lock

2шт.

57

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

4шт.

58

495-31022

WASHER,#10

4шт.

60

183585C1

STRIP

SHIM - right-hand rear window

2шт.

62

896274C1

BUSHING

- window retainer cushion

8шт.

64

1281761C2

SPRING

- window latch

1шт.

65

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

2шт.

68

NSS

NOT SOLD SEPARAT

BOTTOM - cab, order cab assembly 1323784C1

1шт.

69

2753929R5

DECAL

- Caution, for safe operation

1шт.

70

1327768C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 38mm

- self-tapping, special, 5/16 inch

10шт.

71

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

- self-tapping, special, 5/16 inch

4шт.

73

1329797C1

PLUG

- rubber

1шт.

75

NSS

NOT SOLD SEPARAT

STRIP - body to headliner joint seal, 220 inch (5588 mm) long, cut from bulk seal 182747C1 below

1шт.

76

1330146C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/2"

- hex washer head, special, 3/8 NC x 1-1/2 inch

2шт.

77

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

78

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

79

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

80

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

83

1280157C1

GAS STRUT

SPRING - gas, door control

1шт.

84

1340345C1

BALL STUD

STUD - ball (Replaces stud F44882 )

2шт.

85

1304647C1

CLIP

- retaining

2шт.

86

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

88

1288548C1

ANGLE BAR

ANGLE - lamp deflector

2шт.

89

24373R1

SCREW

- pan head cross recess tapping, No. 8 NC x 1/4 inch

6шт.

1263038C1

SEAL,7620mm L

- bulk, 300 inch (7620 mm) long

1шт.

182747C1

DOOR SEAL

SEAL - bulk, 50 foot (15240 mm) long, sold by the foot

1шт.
