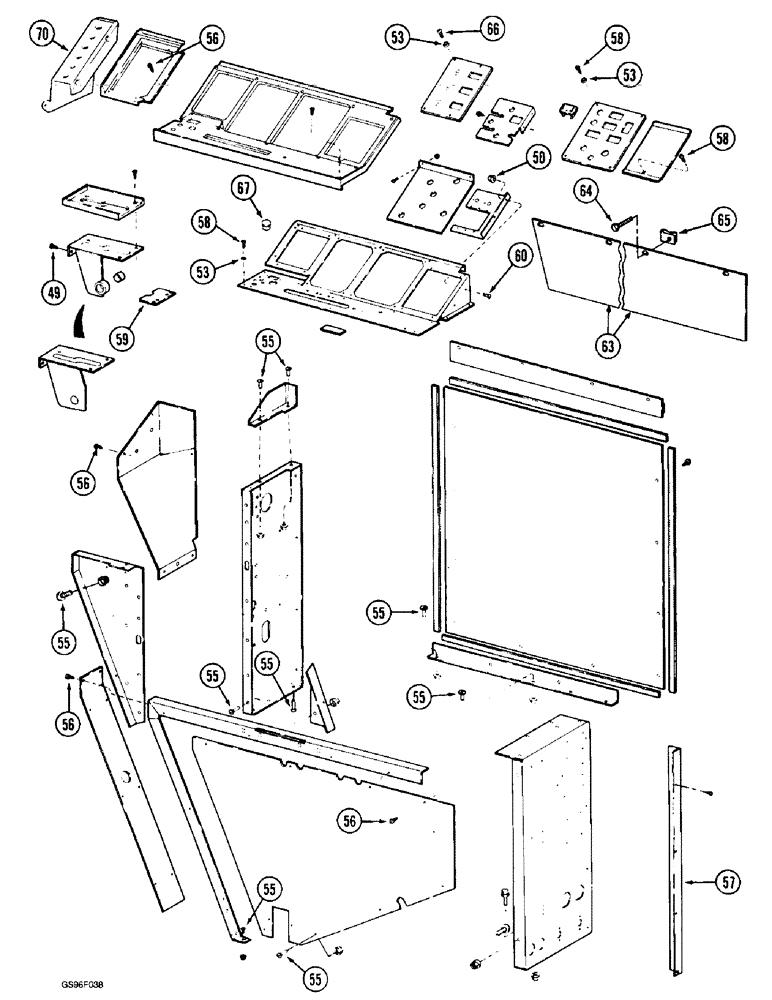

Запчасти Case IH 1800 (9D-06) - RIGHT-HAND CONSOLE (10) - CAB & AIR CONDITIONING

49

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

(Replaces screw 159947) Cross Pan Hd, #10-24 x 3/4"

4шт.

50

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

53

1329968C1

WASHER

- oval head

8шт.

55

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

13шт.

56

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted, No. 10 NC x 1/2 inch, polyseal

24шт.

57

1285451C1

ANGLE BAR

ANGLE - right-hand corner

1шт.

58

260-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

4шт.

59

1285462C1

LARGE PLATE

PLATE - propulsion restrictor

1шт.

60

1330207C1

SCREW,Sl Serr Truss Hd, 1/4" - 20 x 1/2"

- slotted truss head, polyseal, 1/4 NC x 1/2 inch

2шт.

63

1345276C1

LARGE PLATE

COVER - cab filler trim, lower right-hand

1шт.

64

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

65

541310R1

SPRING NUT

- speed, 5/16 inch

5шт.

66

265-1358

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - self-tapping, oval Phillips, No. 10 NC x 1/2 inch

4шт.

67

183617C1

PLUG

- right-hand console, ether start button

1шт.

70

1998989C1

CONSOLE

- control, unit lift

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
