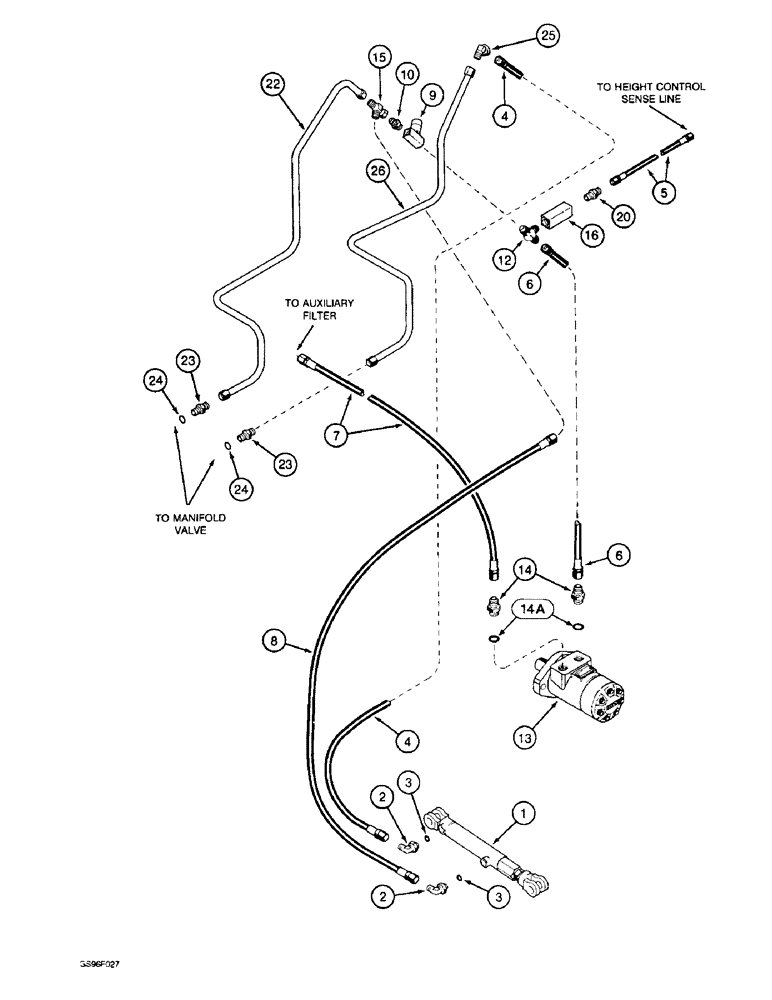

Запчасти Case IH 1800 (8-90) - BOLL BOX SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, boll box, parts list page 8-93

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss

2шт.

4

1541270C1

HYD TUBE

HOSE - hydraulic, tube to cylinder, 3/8 x 72 inch (1829 mm) long

1шт.

5

1541267C1

HOSE

- hydraulic, sensor, 1/4 x 18 inch (457 mm) long

1шт.

6

1541268C1

HOSE

- hydraulic, pressure, 50 inch (1270 mm) long

1шт.

7

1541269C1

HOSE

- hydraulic, return, 3/8 x 80 inch (2032 mm) long

1шт.

8

1541264C1

HOSE

- hydraulic, motor to cylinder, 3/8 x 40 inch (1016 mm) long

1шт.

9

1541265C1

HOSE ASSY.

CONTROL - flow

1шт.

10

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/4 inch PT

1шт.

12

1541271C1

TEE

- 1/4-18 flare branch x flare x 9/16-18 flare

1шт.

13

1541141C2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic (Replaces motor assembly 1541141C1)

1шт.

1542724C2

KIT - seal, not shown

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Not shown #15, 1/4" x 1", HT

1шт.

14

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

2шт.

14a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

15

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

16

1541266C1

VALVE, CHECK

VALVE - check

1шт.

20

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, 7/16-20 flare x 1/4 inch PT

2шт.

22

1338464C1

HYD TUBE

TUBE - manifold, Serial Range: valve-motor

1шт.

23

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adjustable O-ring boss, not shown

1шт.

26

1338465C1

HYD TUBE

TUBE - manifold, Serial Range: valve-cylinder

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
