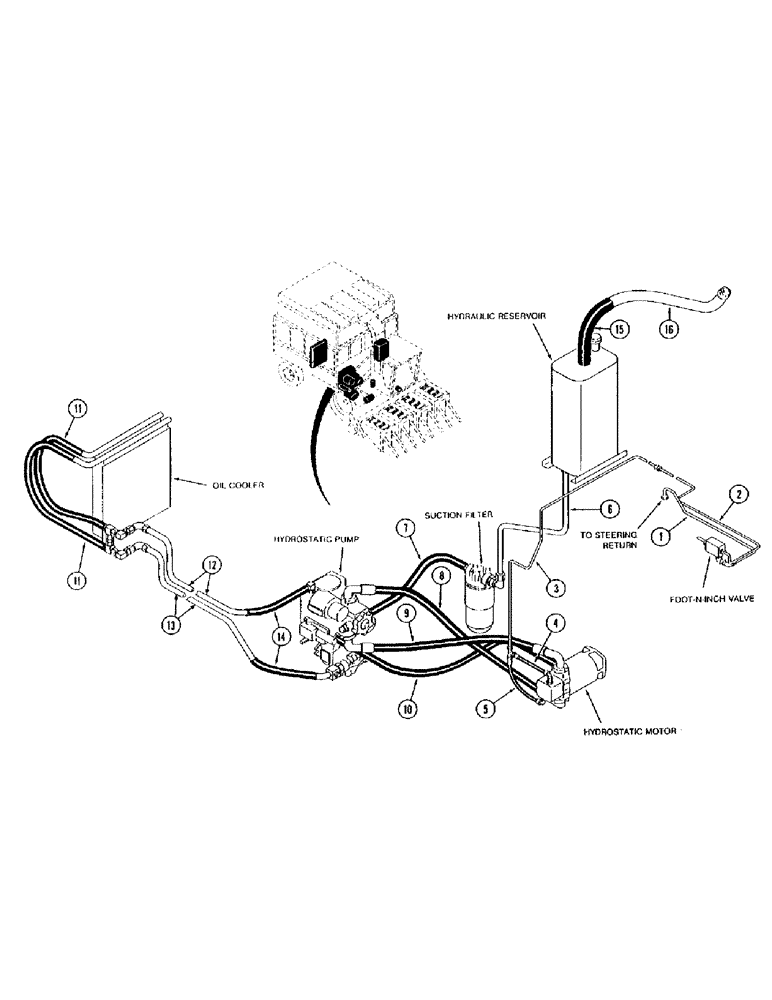

Запчасти Case IH 1800 (1-14) - PICTORIAL INDEX, PROPULSION SYSTEM, PRIOR TO P.I.N. JJC133070 (00) - PICTORIAL INDEX

1

Foot-N-Inch Return Tube, Page 6-10

1шт.

2

Foot-N-Inch Supply Front Tube, Page 6-10

1шт.

3

Foot-N-Inch Supply Rear Tube, Page 6-10

1шт.

4

Foot-N-Inch Upper Hose, Page 6-10

1шт.

5

Foot-N-Inch Lower Hose, Page 6-10

1шт.

6

Filter Supply Tube, Page 8-4

1шт.

7

Pump Suction Hose, Page 8-4

1шт.

8

Forward Pressure Hose, Page 6-8

1шт.

9

Reverse Pressure Hose, Page 6-8

1шт.

10

Case Drain Hose, Page 6-8

1шт.

11

Oil Cooler Hose, Page 6-2

1шт.

12

Oil Cooler Supply Tube, Page 6-2

1шт.

13

Oil Cooler Return Tube, Page 6-2

1шт.

14

Case Drain Hose, Page 6-2

1шт.

15

Reservoir Filler Tube Elbow, Page 8-2

1шт.

16

Reservoir Filler Tube, Page 8-2

1шт.
