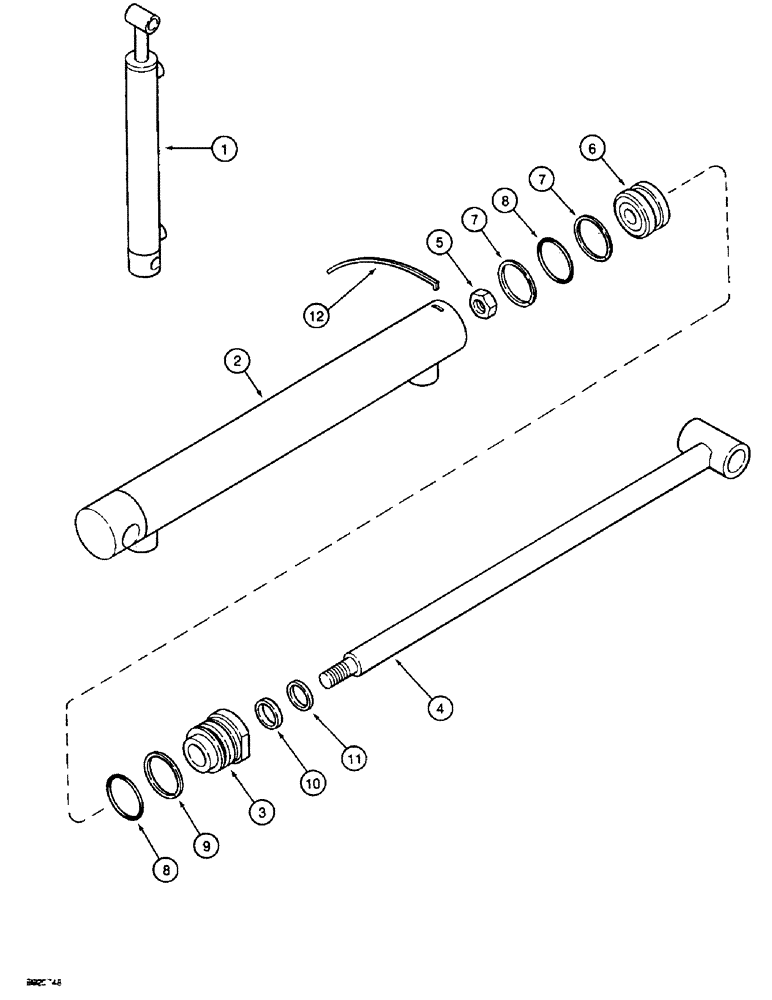

Запчасти Case IH 1800 (8-86) - BASKET DOOR CYLINDER (07) - HYDRAULICS

1

1282155C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 373.5mm Stroke

CYLINDER ASSEMBLY - 2 (51) ID x 14-3/4 inch (374 mm) stroke

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 1282155C92

1шт.

3

108641C1

GLAND

- cylinder, front

1шт.

4

1282222C1

PISTON ROD

ROD - piston

1шт.

5

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

6

108640C2

PISTON

- cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, order kit 63884C92

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, order kit 63884C92

2шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, order kit 63884C92

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rod, order kit 63884C92

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - rod, order kit 63884C92

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining, order kit 63884C92

1шт.

63884C92

SEAL KIT

KIT - seal

1шт.
