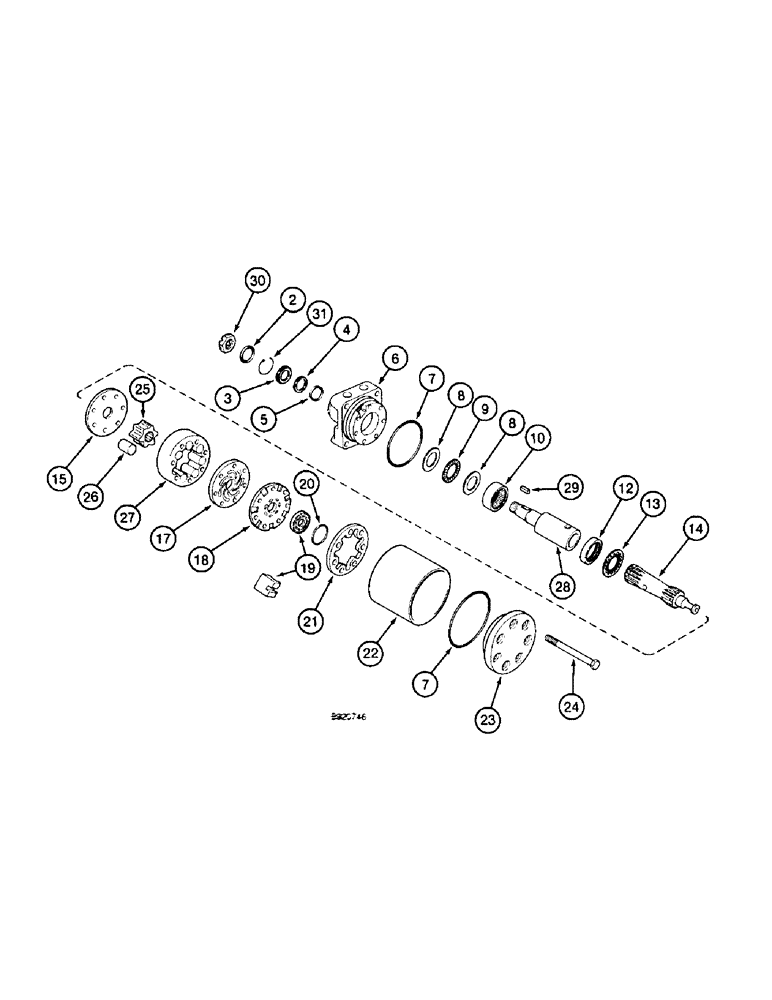

Запчасти Case IH 1800 (8-82) - CONVEYOR UNLOADER MOTOR (07) - HYDRAULICS

1340963C1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - conveyor unloader, if used (See Note)

1шт.

See Figure Note.

1шт.

1994690C1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - conveyor unloader, if used (See Note)

1шт.

See Figure Note.

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - housing

1шт.

See Figure Note.

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

See Figure Note.

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - housing

1шт.

See Figure Note.

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - housing

1шт.

See Figure Note.

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

7

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

See Figure Note.

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - thrust

2шт.

9

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING - shaft

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING - shaft

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

14

NSS

NOT SOLD SEPARAT

LINK - drive

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - manifold

1шт.

18

NSS

NOT SOLD SEPARAT

MANIFOLD - motor

1шт.

19

NSS

NOT SOLD SEPARAT

COMMUTATOR - manifold

1шт.

20

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

See Figure Note.

1шт.

21

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - motor

1шт.

23

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT - retaining

7шт.

25

NSS

NOT SOLD SEPARAT

ROTOR - motor

1шт.

26

NSS

NOT SOLD SEPARAT

VANE - motor

7шт.

27

NSS

NOT SOLD SEPARAT

STATOR - motor

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT - coupling

1шт.

29

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

30

1266399C1

NUT

- hex, special

1шт.

31

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

1980156C1

SEAL KIT

KIT - seal

1шт.

See Figure Note.

1шт.
