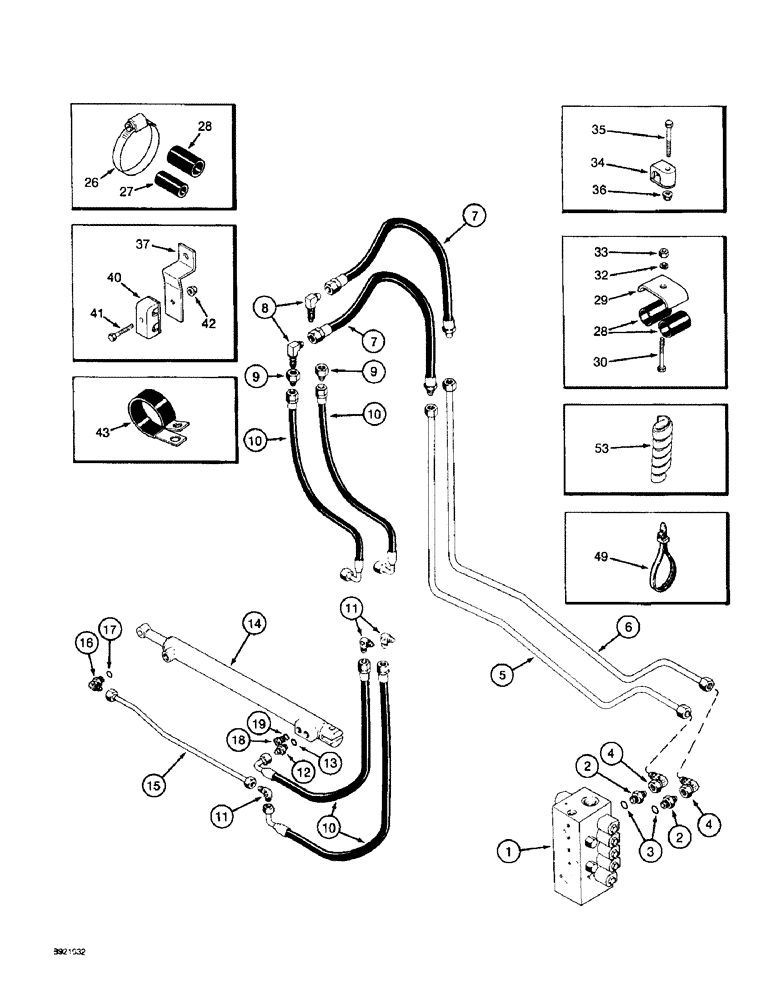

Запчасти Case IH 1800 (8-76) - DISTRIBUTOR CYLINDER SYSTEM, PRIOR TO P.I.N. JJC133070 (07) - HYDRAULICS

1

1341926C1

VALVE

ASSEMBLY - basket manifold, parts list page 8-75

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

2шт.

5

1345007C2

TUBE,0.625 mm OD, 790, 720 mm Length

- compactor lower (Replaces tube 1345007C1)

1шт.

6

1345006C2

TUBE,0.625 mm OD, 820, 210 mm Length

- compactor raise (Replaces tube 1345006C1)

1шт.

7

1288780C1

HOSE ASSY.,15.88 mm ID x 1600.20, SAE 100R2

HOSE ASSY, 15.88 mm ID x 1600.20 mm, SAE 100R2, Compactor Supply

2шт.

8

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree, 7/8-14 inch flare x bulkhead flare

2шт.

9

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

2шт.

10

1285374C3

HOSE

- compactor cylinder

4шт.

11

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

3шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

CYLINDER ASSEMBLY - distributor, parts list page 8-79

1шт.

15

1285293C4

TUBE,0.5" OD, 496.9,53.8 mm Length

- compactor cylinder (Replaces tube 1285293C3)

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adjustable O-ring boss

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adjustable, 2-9/16 - 3-1/2 inch diameter

1шт.

27

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long

2шт.

28

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - 3/4 ID x 1-13/64 inch long

3шт.

29

165601C1

CLAMP

- reservoir drain tube

1шт.

30

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

425-106

NUT,3/8"-16, Cl 5

2шт.

34

183822C1

CLAMP

- tube retaining

2шт.

35

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

1шт.

36

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

37

1288818C1

SUPPORT

BRACKET - tube support

2шт.

40

1301178C1

CLAMP

- steering tubes

2шт.

42

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

43

515-25508

CLAMP,2", Insul, 1/2" Bolt

- P-type, 2 inch ID

2шт.

49

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

4шт.

53

1212902C1

INSULATOR

CONDUIT - hose insulation, 24 inch (610 mm) long, cut from bulk conduit 196249A1 below

4шт.

196249A1

CONDUIT

- bulk, 39-13/32 inch (1001 mm) long

1шт.

41

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
