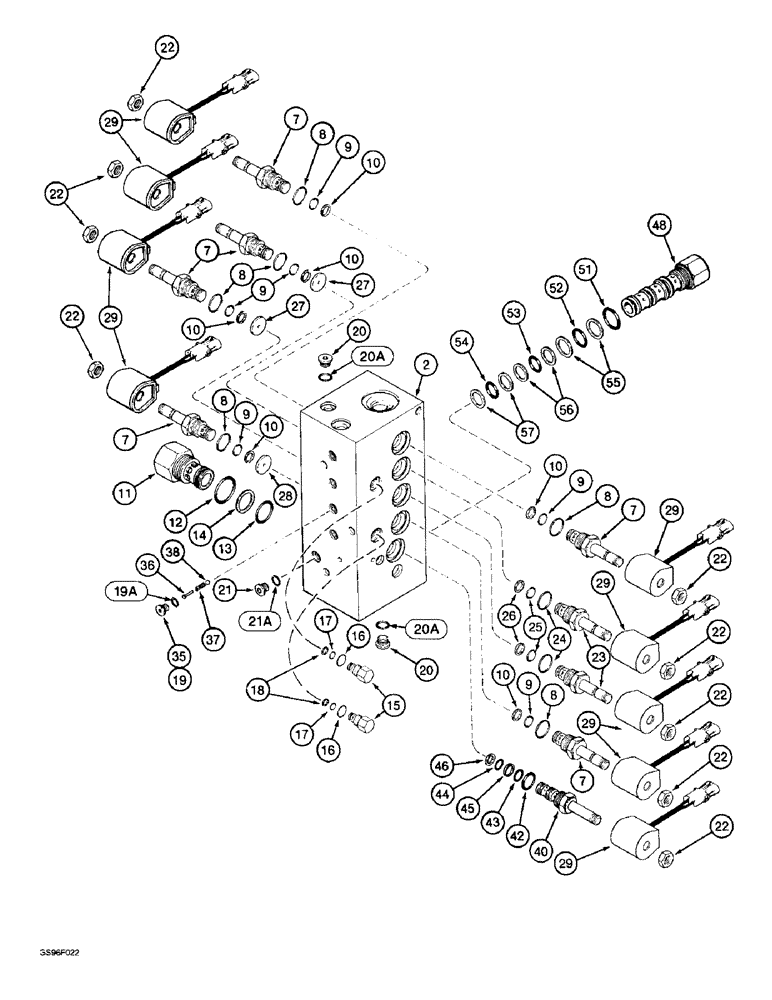

Запчасти Case IH 1800 (8-74) - BASKET MANIFOLD VALVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1341926C1
VALVE
ASSEMBLY - basket manifold
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - valve, order valve assembly 1341926C1
1шт.
7
1288972C1
SOLENOID VALVE
VALVE - two-way solenoid
6шт.
149942C1
SEAL KIT
KIT - seal replacement
6шт.
8
NSS
NOT SOLD SEPARAT
O-RING - solenoid
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - solenoid
1шт.
10
NSS
NOT SOLD SEPARAT
WASHER - backup
1шт.
11
1288966C1
VALVE
ASSEMBLY - flow control
1шт.
1288954C1
SEAL KIT
KIT - seal replacement
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING - flow control valve
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - flow control valve
1шт.
14
NSS
NOT SOLD SEPARAT
WASHER - backup
1шт.
15
87227C1
VALVE
ASSEMBLY - check
2шт.
149942C1
SEAL KIT
KIT - seal replacement
2шт.
16
NSS
NOT SOLD SEPARAT
O-RING - check valve
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING - check valve
1шт.
18
NSS
NOT SOLD SEPARAT
WASHER - backup
1шт.
19
278548
PLUG,Hex, 7/16"-20 ORB
5шт.
19a
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
5шт.
20
9625178
PLUG,9/16" - 18 ORB
2шт.
21
71100209
PLUG,Hex Soc, 3/4"-16 ORB
4шт.
21a
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
4шт.
22
218-1253
BHD LOCK NUT,Blkhd, 1/2"-20
NUT - bulkhead union lock, 5/16 inch NF (Replaces nut 9403292)
9шт.
23
87252C1
SOLENOID VALVE
VALVE ASSEMBLY - two way solenoid, SV2 stamped on hex
2шт.
149942C1
SEAL KIT
KIT - seal replacement
2шт.
24
NSS
NOT SOLD SEPARAT
O-RING - solenoid
1шт.
25
NSS
NOT SOLD SEPARAT
O-RING - solenoid
1шт.
26
NSS
NOT SOLD SEPARAT
WASHER - backup
1шт.
27
1288973C1
LARGE PLATE
DISC - orifice, 1/8 inch
2шт.
28
1288974C1
LARGE PLATE
DISC - orifice
1шт.
29
1340843C1
SOLENOID,12V
KIT - solenoid coil, 12 volt
9шт.
1341811C1
SPRING-CHECK
KIT - sense check
5шт.
35
NSS
NOT SOLD SEPARAT
PLUG - check sense
1шт.
36
NSS
NOT SOLD SEPARAT
GUIDE - check sense
1шт.
37
NSS
NOT SOLD SEPARAT
SPRING - check sense
1шт.
38
NSS
NOT SOLD SEPARAT
BALL - check sense
1шт.
40
1340875C1
VALVE
ASSEMBLY - three way solenoid
1шт.
42
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
43
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
44
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
45
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
1шт.
46
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
1шт.
48
1340838C1
PILOT VALVE
VALVE ASSEMBLY - pilot operated three-way
1шт.
1341812C1
O-RING KIT
KIT - seal replacement
1шт.
51
NSS
NOT SOLD SEPARAT
O-RING - pilot operated valve
1шт.
52
NSS
NOT SOLD SEPARAT
O-RING - pilot operated valve
1шт.
53
NSS
NOT SOLD SEPARAT
O-RING - pilot operated valve
1шт.
54
NSS
NOT SOLD SEPARAT
O-RING - pilot operated valve
1шт.
55
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
2шт.
56
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
2шт.
57
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
2шт.
20a
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
2шт.
Выбрано товаров: 53
