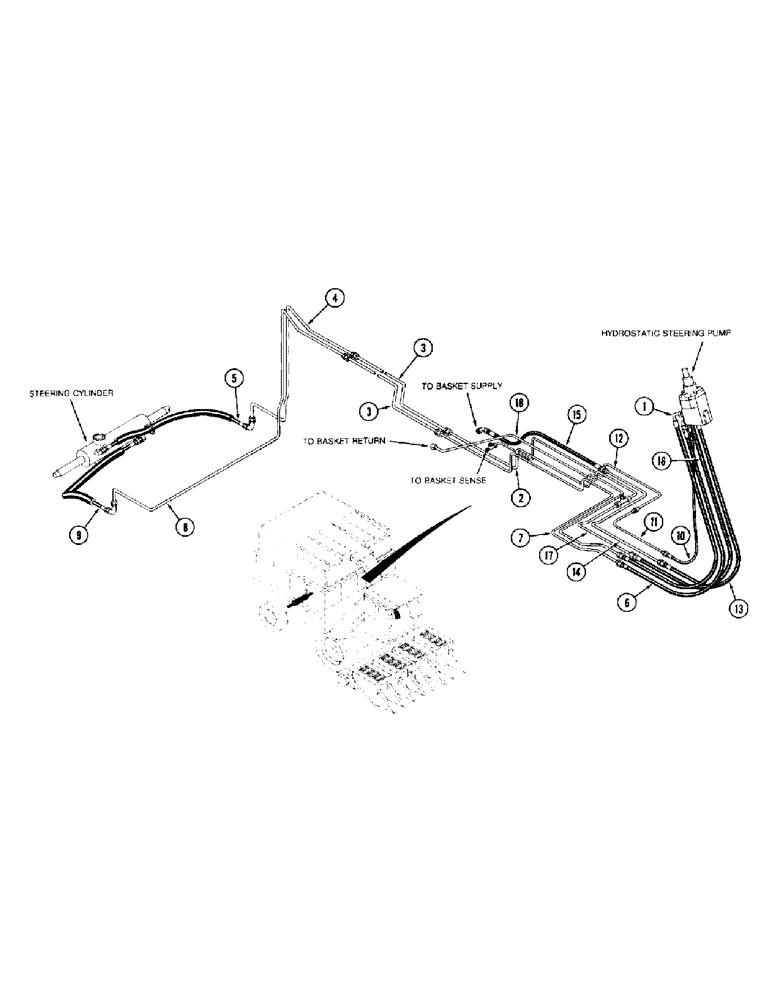

Запчасти Case IH 1800 (1-12) - PICTORIAL INDEX, STEERING SYSTEM (00) - PICTORIAL INDEX

1

Left-Hand Turn Front Hose, Page 5-4

1шт.

2

Left-Hand Turn First Tube, Page 5-4

1шт.

3

Left-Hand and Right-Hand Turn Second Tube, Page 5-4

1шт.

4

Left-Hand Turn Third Tube, Page 5-4

1шт.

5

Left-Hand Turn Rear Hose, Page 5-4

1шт.

6

Right-Hand Turn Front Hose, Page 5-4

1шт.

7

Right-Hand Turn First Tube, Page 5-4

1шт.

8

Right-Hand Turn Third Tube, Page 5-4

1шт.

9

Right-Hand Turn Rear Hose, Page 5-4

1шт.

10

Steering Sense Hose, Page 5-6

1шт.

11

Steering Sense Front Tube, Page 5-6

1шт.

12

Steering Sense Rear Tube, Page 5-6

1шт.

13

Steering Supply Hose, Page 5-6

1шт.

14

Steering Supply Front Tube, Page 5-6

1шт.

15

Steering Supply Rear Hose, Page 5-6

1шт.

16

Steering Return Hose, Page 5-6

1шт.

17

Steering Return Front Tube, Page 5-6

1шт.

18

Steering Return Rear Tube, Page 5-6

1шт.
