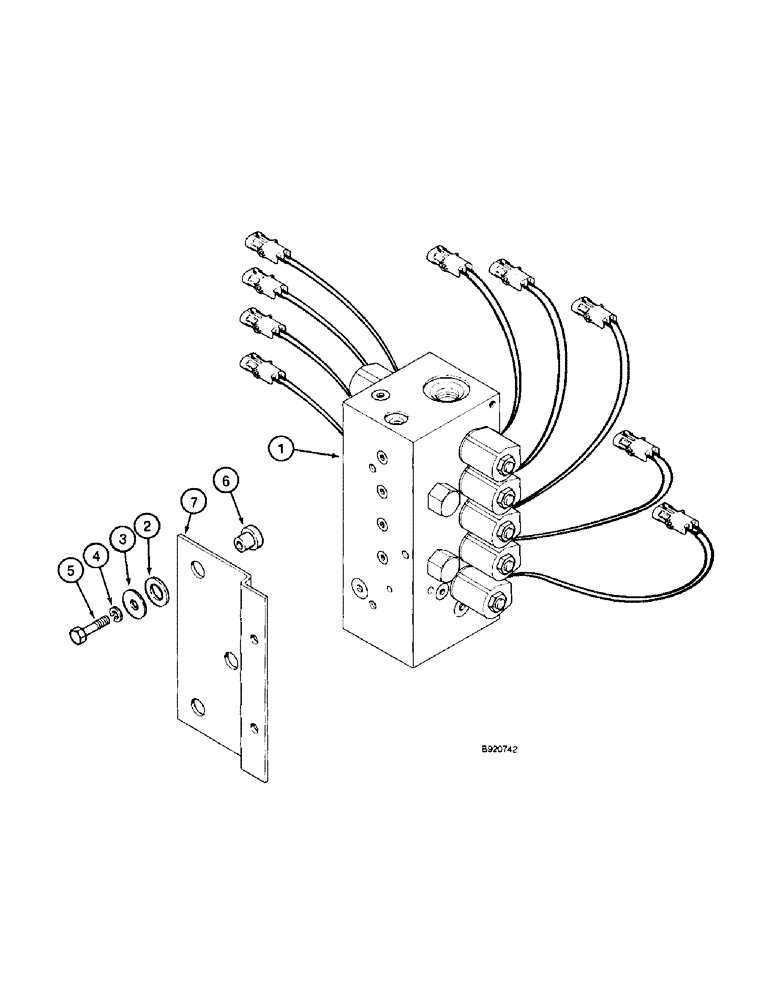

Запчасти Case IH 1800 (8-72) - BASKET MANIFOLD VALVE, MOUNTING (07) - HYDRAULICS

1

1341926C1

VALVE

ASSEMBLY - basket manifold, parts list page 8-75

1шт.

2

95-81051

WASHER,19.84mm ID x 31.75mm OD x 3.81mm Thk

- flat, 25/32 x 1-1/4 x 1/8 inch

4шт.

3

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

4

492-11038

LOCK WASHER,3/8"

3шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

6

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

3шт.

7

1282455C1

SUPPORT

BRACKET - valve mounting

1шт.
