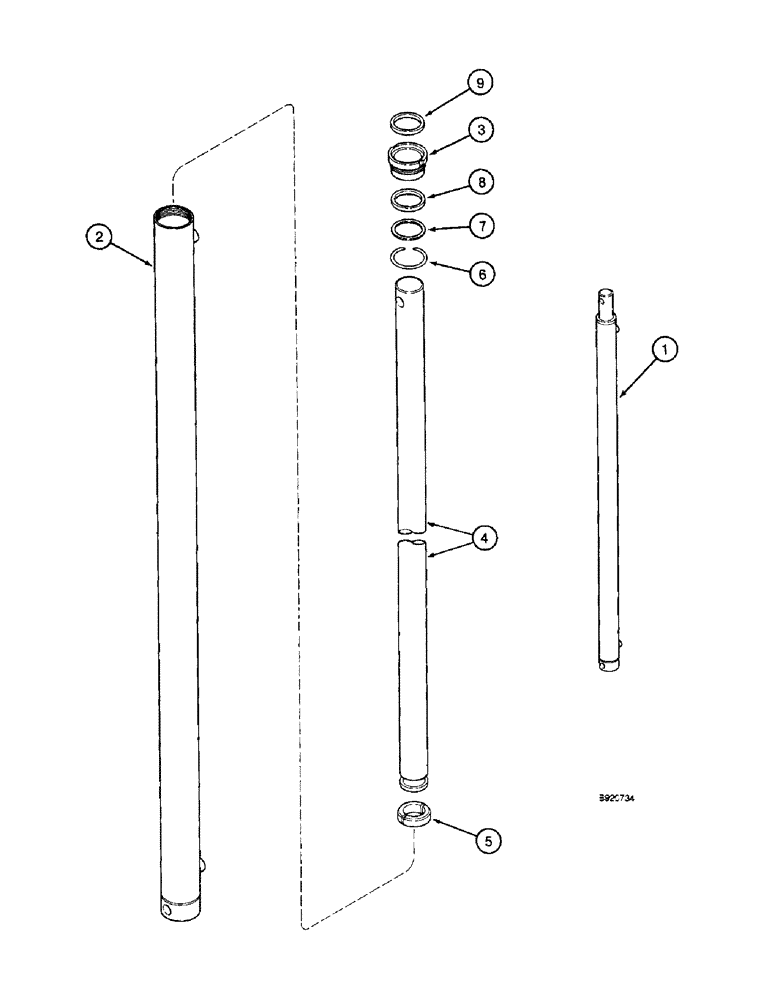

Запчасти Case IH 1800 (8-62) - BASKET LIFT SLAVE CYLINDER (07) - HYDRAULICS

1

1282195C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3 (76) ID x 72 inch (1829 mm) stroke

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 1282195C91

1шт.

3

1286335C1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

1286331C1

PISTON ROD

ROD - piston

1шт.

5

1286332C1

RETAINER

- piston rod, two halves

1шт.

6

1286333C1

CIRCLIP

RING - retaining

1шт.

7

1286334C1

WASHER

RING - backup

1шт.

1282389C1

SEAL KIT

KIT - seal replacement

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod U-cup

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.
