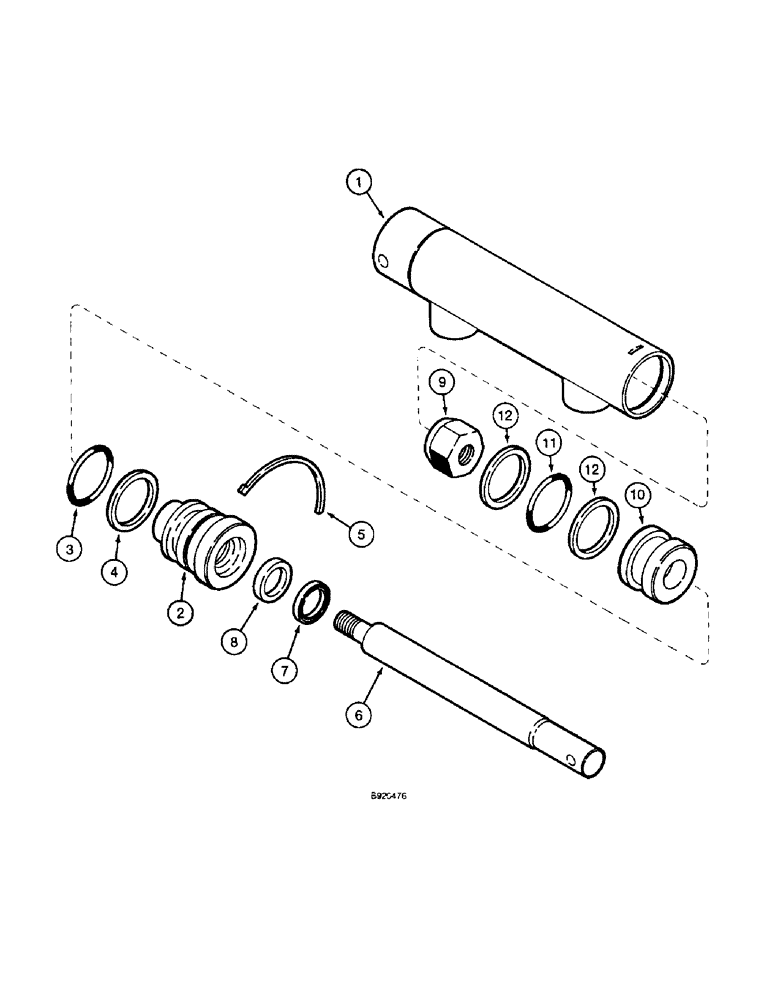

Запчасти Case IH 1800 (8-58) - FAN ENGAGEMENT CYLINDER, USED WITH 10 INCH DIAMETER IDLER PULLEY (07) - HYDRAULICS

133405C92

CYLINDER

ASSEMBLY - 2 (51) ID x 2-1/2 inch (63.5 mm) stroke

1шт.

87337239R

REMAN-HYD CYLINDER

1800 CASE IH COTTON HARVESTER, Assembly 2 (51) ID x 2-1/2 inch (63.5 mm) stroke (7/91-), Reman for New PN 133405C92

1шт.

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order cylinder assembly 133405C92

1шт.

2

108641C1

GLAND

- cylinder

1шт.

3

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

Gland -326, 90 Duro, 1.60" ID x .210" Thk

1шт.

4

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

RING - backup, gland O-ring

1шт.

5

461180R1

RETAINER

RING - retaining, gland

1шт.

6

108639C1

PISTON ROD

ROD - piston, cylinder

1шт.

7

532773R1

WIPER SEAL

WIPER - piston rod

1шт.

8

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

- piston rod (Replaces O-ring and backup ring)

1шт.

9

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

10

108640C2

PISTON

- cylinder

1шт.

11

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

Piston -326, 90 Duro, 1.60" ID x .210" Thk

1шт.

12

381850R2

BACK-UP RING,Split, 41.68mm ID x 51.18mm OD x 2.39mm Thk

RING - backup, piston O-ring

2шт.

63884C92

SEAL KIT

KIT - seal

1шт.
