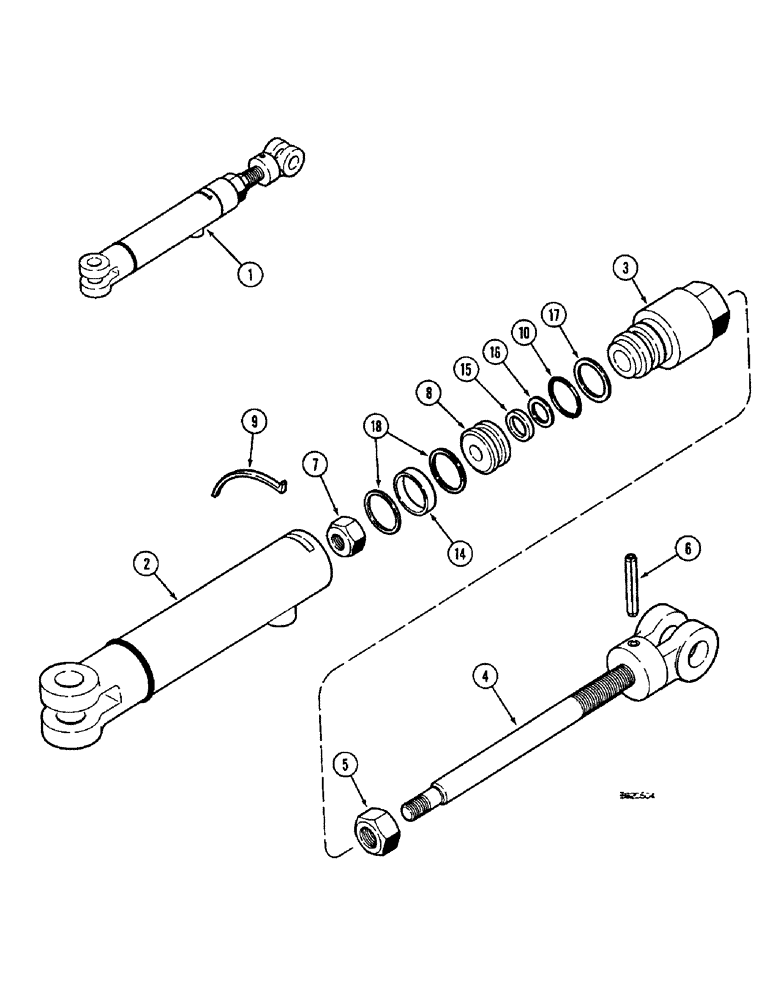

Запчасти Case IH 1800 (8-56) - FAN ENGAGEMENT CYLINDER, USED WITH 8 INCH DIAMETER IDLER PULLEY (07) - HYDRAULICS

1

145389C93

CYLINDER ASSY.

CYLINDER ASSEMBLY - fan clutch

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order cylinder assembly 145389C93

1шт.

3

149629C2

JACK HEAD

HEAD - cylinder, front

1шт.

4

381826R11

PISTON ROD

ROD ASSEMBLY - piston

1шт.

5

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

6

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

7

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC (Replaces nut 9411638)

1шт.

8

381828R4

JACK PISTON

PISTON - cylinder

1шт.

386690R93

SEAL KIT

KIT - cylinder seal

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - front head, order kit 386690R93

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 13/16 x 1 inch, order kit 386690R93

1шт.

14

NSS

NOT SOLD SEPARAT

RING - piston quad, order kit 386690R93

1шт.

15

NSS

NOT SOLD SEPARAT

RING - piston rod quad, order kit 386690R93

1шт.

16

NSS

NOT SOLD SEPARAT

RING - piston rod backup, order kit 386690R93

1шт.

17

NSS

NOT SOLD SEPARAT

RING - head backup, order kit 386690R93

1шт.

18

NSS

NOT SOLD SEPARAT

RING - piston backup, order kit 386690R93

2шт.
