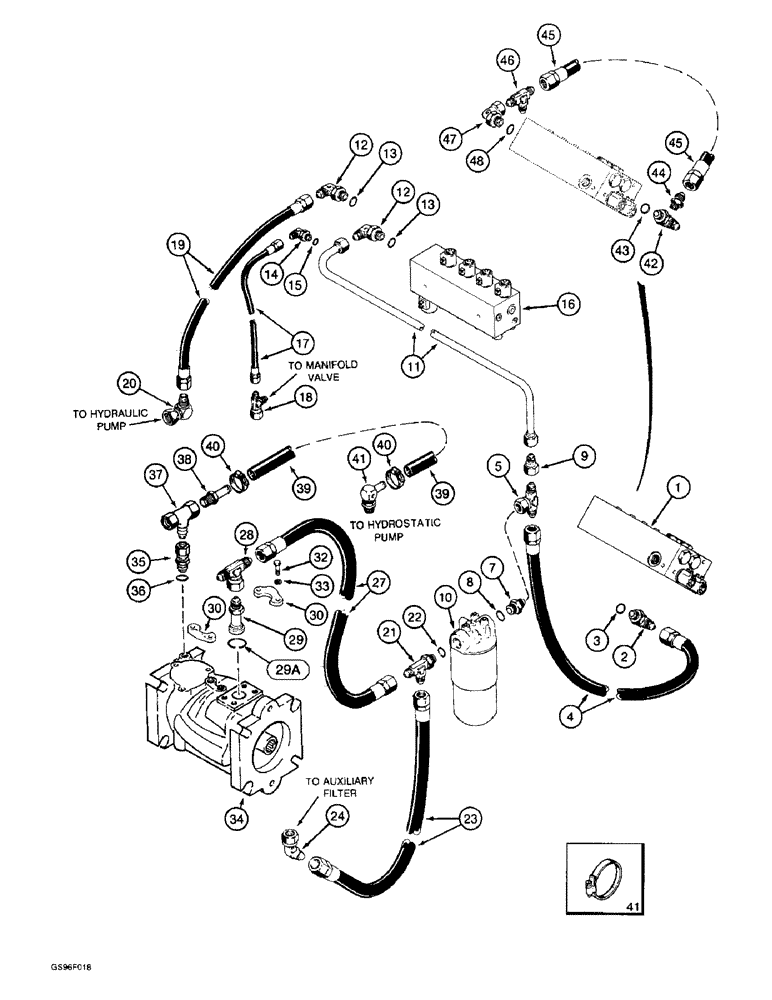

Запчасти Case IH 1800 (8-49A) - HEADER RETURN SYSTEM, P.I.N. JJC133070 AND AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - motor control, parts list page 8-39

1шт.

2

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adjustable O-ring boss

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

1541234C1

HOSE

- return, 56 inch (1422 mm) long

1шт.

5

218-838

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

- 1-5/16-12 inch swivel branch x flare x flare

1шт.

7

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, 1-5/16-12 flare x 1-5/8 inch O-ring

1шт.

8

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

9

1541239C1

RESTRICTOR

REDUCER - 1-1/16-12 male to 1-5/16 inch female

1шт.

10

REF

INSTRUCTION

FILTER ASSEMBLY - header auxiliary, parts list page 8-9

1шт.

11

1541308C1

TUBE

- return, 43-7/16 inch (1103 mm) long

1шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adjustable O-ring boss

2шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adjustable O-ring boss

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY - height control, parts list page 8-31

1шт.

17

1541236C1

HOSE

- sensor, 48 inch (1219 mm) long

1шт.

18

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x flare x swivel

1шт.

19

1541235C1

HOSE

- pressure, 100 inch (2540 mm) long

1шт.

20

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

21

218-5249

TEE,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 1-5/8-12 inch flare branch x flare x adjustable O-ring boss

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

23

1541231C1

HOSE

- return, 60 inch (1524 mm) long

1шт.

24

218-5177

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Female JIC

- 45 degree, 1-5/8-12 inch flare x swivel

1шт.

27

1541322C1

HOSE

- return, 72 inch (1829 mm) long

1шт.

28

218-839

TEE,37 Degree, 1 5/8"-12 x 1 5/8"-12, Fem Sw Br

- 1-5/8-12 inch swivel branch x flare x flare

1шт.

29

1541240C1

ADAPTER

- 1-5/8-12 inch flare x 2 inch O-ring

1шт.

29a

238-8228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 8, 90 Duro

- 2-1/4 ID x 1/8 inch wide

1шт.

30

1541237C1

FIXING BRACKET

FLANGE - adapter

1шт.

32

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

34

1998916C1

PUMP, HYDRAULIC

PUMP ASSEMBLY - unit drive, parts list page 8-53

1шт.

35

1541320C1

ADAPTER

- special

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

37

1541321C1

TEE

- special, see page 6-3B for oil cooler supply hose

1шт.

38

1541241C1

FITTING

- 1 inch hose barb

1шт.

39

1541228C1

HOSE

- case drain, if used

1шт.

39

1541326C1

HYDRAULIC HOSE,1.00" ID x 24.00"

- Return, If used 1.00" ID x 24.00"

1шт.

40

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

41

1546404C1

ELBOW

- 90 degree, special, 1 barb end x 1-1/16 inch PT (Replaces elbow 178995C1)

1шт.

42

1541298C1

ADAPTER

- hose, if used

1шт.

43

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

44

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, 7/16-20 flare x 1/4 inch PT

1шт.

45

1541293C1

HOSE

- orifice, 17 inch (432 mm) long

1шт.

46

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x flare x swivel

1шт.

47

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adjustable O-ring boss, if used

1шт.

48

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
