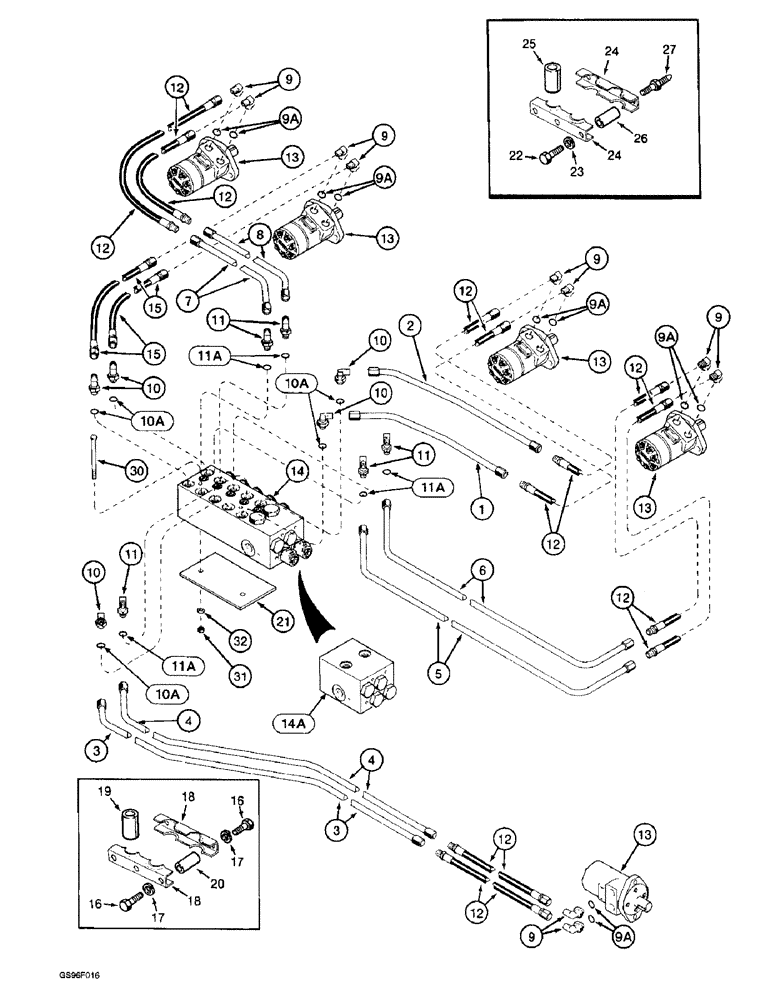

Запчасти Case IH 1800 (8-46) - HEADER DRIVE SYSTEM (07) - HYDRAULICS

1

1541181C1

HYD TUBE

TUBE - hydraulic, return, unit No. 3

1шт.

2

1541182C1

HYD TUBE

TUBE - hydraulic, supply, unit No. 3

1шт.

3

1541187C1

HYD TUBE

TUBE - hydraulic, return, auger drive

1шт.

4

1541188C1

HYD TUBE

TUBE - hydraulic, supply, auger drive

1шт.

5

1541183C1

HYD TUBE

TUBE - hydraulic, return, unit No. 4

1шт.

6

1541184C1

HYD TUBE

TUBE - hydraulic, supply, unit No. 4

1шт.

7

1541185C1

HYD TUBE

TUBE - hydraulic, return, unit No. 1

1шт.

8

1541186C1

HYD TUBE

TUBE - hydraulic, supply, unit No. 1

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adjustable O-ring boss

10шт.

9a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

10шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adjustable O-ring boss

5шт.

10a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

5шт.

11

218-5125

ELBOW,90 Degree, Adj, 3/4"-16 O-Ring x 3/4"-16 37º

- 90 degree long, 3/4-16 inch flare x adjustable O-ring boss

5шт.

11a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

5шт.

12

1541248C1

HOSE

- hydraulic

8шт.

13

1541141C2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, drive, stamped 101-1033-009, if used (Replaces motor assembly 1541141C1)

5шт.

1542724C2

KIT - seal

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

13

1541305C2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, drive, stamped 101-1700-009, if used (Replaces motor assembly 1541305C1)

5шт.

1542724C2

KIT - seal

1шт.

14

1541273C2

VALVE

ASSEMBLY - motor control, parts list page 8-39

1шт.

14a

1541274C1

VALVE

ASSEMBLY - motor control add-on, used with six row harvester, parts list page 8-39B

1шт.

15

1541247C1

HOSE

- hydraulic, supply and return, unit No. 2

2шт.

1541249C1

CLAMP

ASSEMBLY - hose

5шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

1541283C1

MOUNTING CLIP

CLAMP - tube, half of two piece unit

2шт.

19

1541280C1

RING

BUSHING - clamp

2шт.

20

1541281C1

SPACER

NUT - special, socket head stacking

2шт.

21

1541175C1

LARGE PLATE

SPACER - valve block

1шт.

1541250C1

MOUNTING CLIP

CLAMP ASSEMBLY - tube

2шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

1541283C1

MOUNTING CLIP

CLAMP - tube, half of two piece unit

2шт.

25

1541280C1

RING

BUSHING - clamp

2шт.

26

1541284C1

ADAPTER

- self-tapping

2шт.

27

1541281C1

SPACER

NUT - special, socket head stacking

2шт.

30

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.
