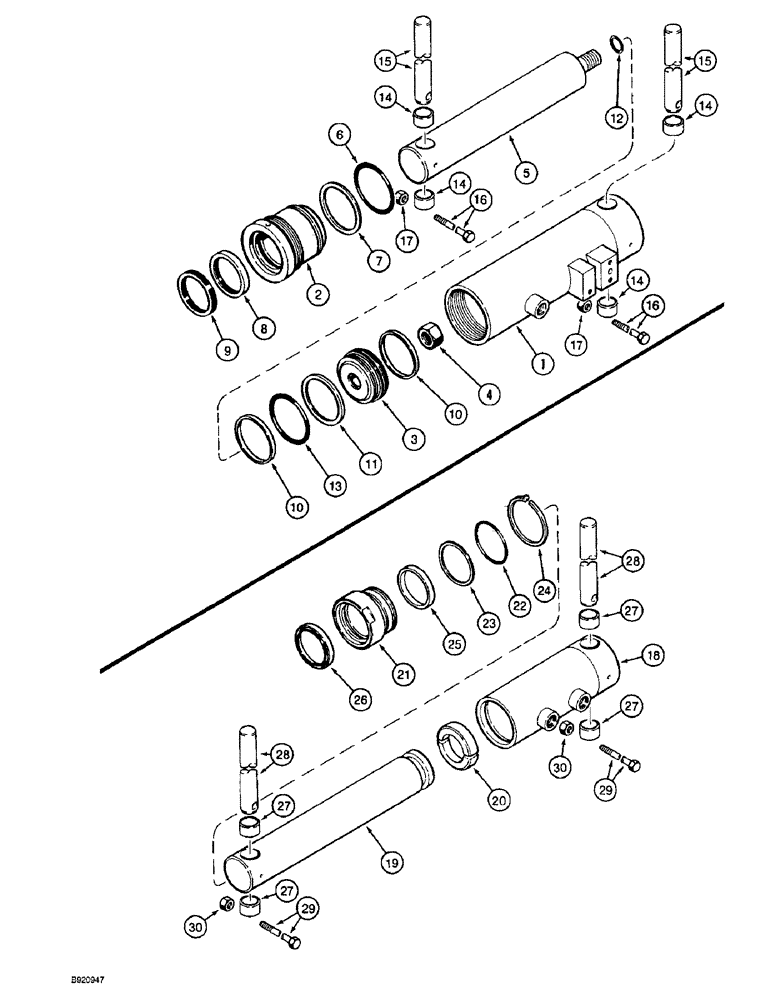

Запчасти Case IH 1800 (8-44) - HEADER LIFT MASTER CYLINDER, HEADER LIFT SLAVE CYLINDER (07) - HYDRAULICS

1543387C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 3-1/2 (89) ID x 5-1/4 inch (133 mm) stroke (See Note)

1шт.

See page 8-43 for cylinders without replaceable bushings at mounting holes in cylinder body and piston rod. Cylinder part number is stamped at base end of cylinder body.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 1543387C1

1шт.

2

1957766C1

CYLINDER END CAP

GLAND - cylinder

1шт.

3

1957765C1

JACK PISTON

PISTON - cylinder

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - piston, order cylinder assembly 1543387C1

1шт.

1957767C1

SEAL KIT

KIT - seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - cylinder sealing, order kit 1957767C1

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, order kit 1957767C1

1шт.

8

NSS

NOT SOLD SEPARAT

U-CUP - cylinder, order kit 1957767C1

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 1957767C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - wear, order kit 1957767C1

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston, order kit 1957767C1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - cylinder sealing, order kit 1957767C1

1шт.

13

NSS

NOT SOLD SEPARAT

EXPANDER - cylinder, order kit 1957767C1

1шт.

14

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

- pivot, cylinder body and piston rod

4шт.

15

1288567C3

PIVOT PIN

PIN - pivot, cylinder, at body and piston rod end

2шт.

16

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

17

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

1543388C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 3 (76) ID x 5-1/4 inch (133 mm) stroke (See Note) HEADER SLAVE

1шт.

See page 8-43 for cylinders without replaceable bushings at mounting holes in cylinder body and piston rod. Cylinder part number is stamped at base end of cylinder body.

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 1543388C1 HEADER LIFT SLAVE

1шт.

19

NSS

NOT SOLD SEPARAT

ROD - piston, order cylinder assembly 1543388C1 HEADER LIFT SLAVE

1шт.

20

1957762C1

PISTON

- cylinder, two piece HEADER LIFT SLAVE

1шт.

21

1957763C1

JACK HEAD

HEAD - cylinder LIFT SLAVE

1шт.

1957764C1

SEAL KIT

KIT - seal HEADER LIFT SLAVE CYLINDER

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - head sealing, order kit 1957764C1 LIFT SLAVE CYLINDER

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup, order kit 1957764C1 HEADER LIFT SLAVE CYLINDER

1шт.

24

NSS

NOT SOLD SEPARAT

RING - retaining wire, head, order kit 1957764C1 LIFT SLAVE CYLINDER

1шт.

25

NSS

NOT SOLD SEPARAT

U-CUP - cylinder, order kit 1957764C1 HEADER LIFT SLAVE

1шт.

26

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 1957764C1 HEADER LIFT SLAVE CYLINDER

1шт.

27

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

- pivot, cylinder body and piston rod HEADER LIFT SLAVE

4шт.

28

1288567C3

PIVOT PIN

PIN - pivot, cylinder, at body and piston rod end HEADER LIFT SLAVE

2шт.

29

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch HEADER LIFT SLAVE CYLINDER

2шт.

30

232-4118

NUT,1/2"-13, GC

NUT, LOCK, , Header lift slave cylinder 1/2"-13, GC

2шт.
