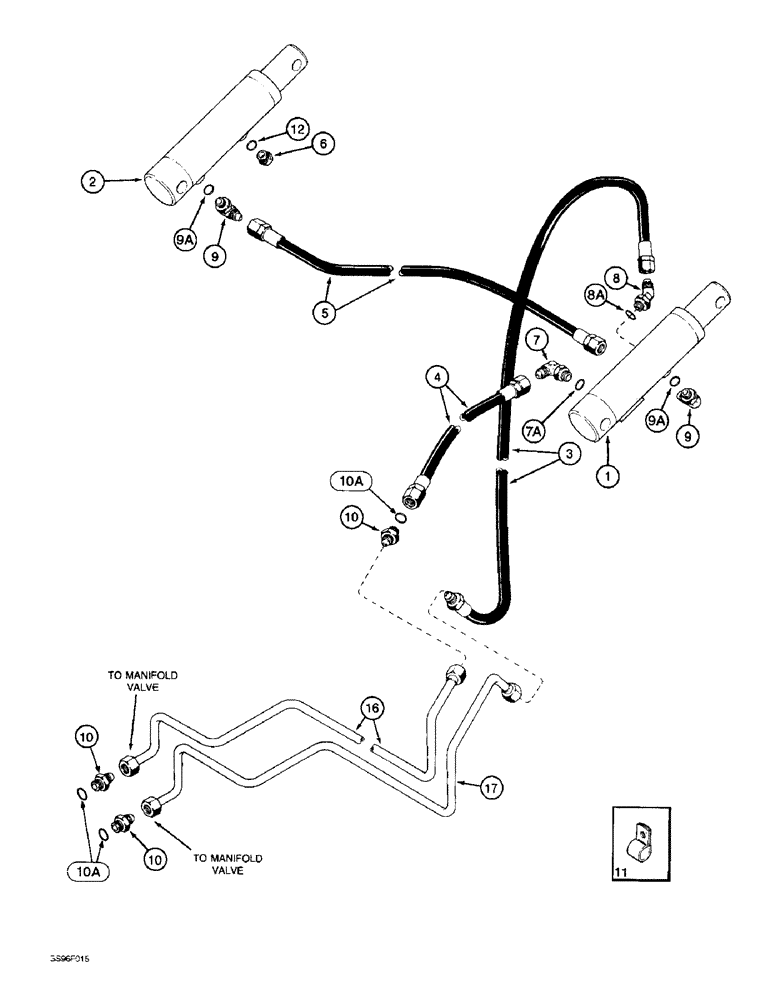

Запчасти Case IH 1800 (8-40) - HEADER LIFT SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - master lift, parts list pages 8-43 or 8-45

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - slave lift, parts list pages 8-43 or 8-45

1шт.

3

1541243C1

HOSE

- pressure

1шт.

4

1541244C1

HOSE

- pressure

1шт.

5

1541245C1

HOSE

-, Serial Range: cylinder-cylinder

1шт.

6

201-910

PLUG,9/16"-18 ORFS

NUT - hex, 1 inch NF

1шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss

1шт.

7a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adjustable O-ring boss

1шт.

8a

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss

2шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

10a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

11

1541246C1

CLAMP

- hose, 1 inch

1шт.

12

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

16

1338463C1

HYD TUBE

TUBE - lift cylinder supply

1шт.

17

1338462C1

HYD TUBE

TUBE - lift cylinder return

1шт.

9a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
