(8-39A) - MOTOR CONTROL VALVE ADD-ON MODULE TWO STATION

Запчасти Case IH 1800 (8-39A) - MOTOR CONTROL VALVE ADD-ON MODULE TWO STATION (07) - HYDRAULICS

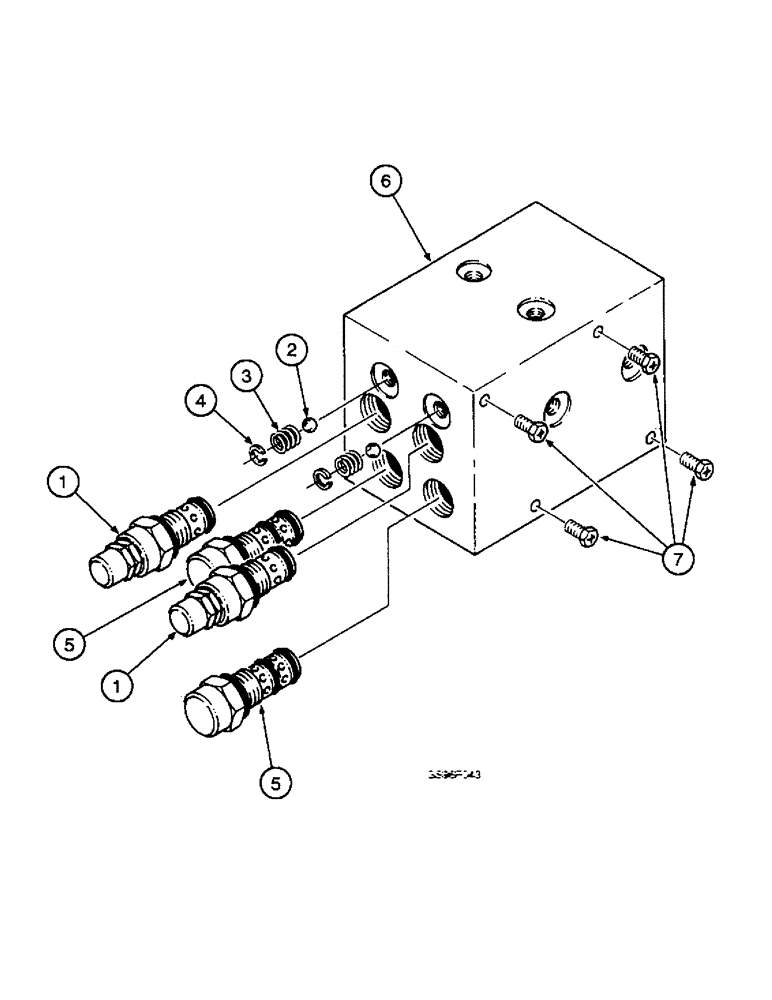

Схема запчастей Case IH 1800 - (8-39A) - MOTOR CONTROL VALVE ADD-ON MODULE TWO STATION (07) - HYDRAULICS
2
6
5
1
3
5
4
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1541274C1

VALVE

ASSEMBLY - motor control add-on, two station, used with six row harvester

1шт.

1

1541209C2

VALVE

- needle

2шт.

2

1541220C1

BALL - check

2шт.

3

1541221C1

SPRING - check

2шт.

4

1541222C1

RETAINER - spring

2шт.

5

1541200C1

VALVE

ELEMENT - flow regulator

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 1541274C1

1шт.

7

61-33164

HEX SOC SCREW,5/16"-18 x 4"

SCREW - hex socket, 5/16 NC x 4 inch

4шт.
