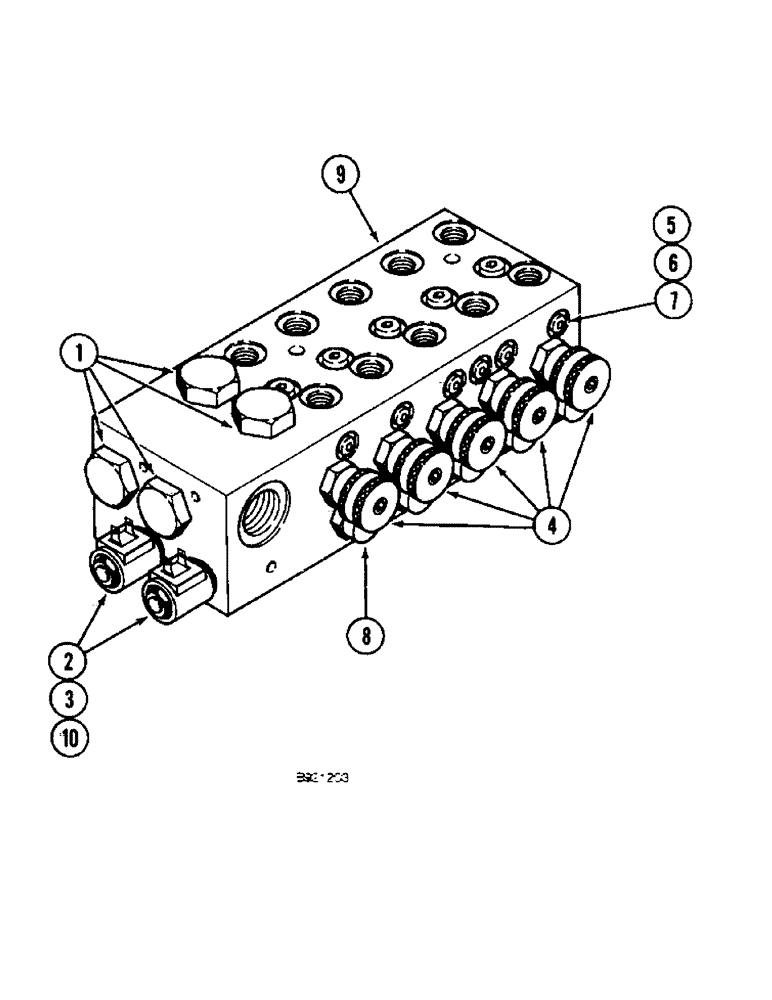

Запчасти Case IH 1800 (8-38) - MOTOR CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

1541273C2

VALVE

ASSEMBLY - motor control (Replaces valve assembly 1541273C1)

1шт.

1

1541211C1

VALVE

ASSEMBLY - directional

4шт.

110902A1

SEAL KIT

KIT - seal, directional valve

1шт.

2

1541196C1

SOLENOID

VALVE ASSEMBLY - solenoid

2шт.

1542835C1

SEAL KIT

KIT - seal, solenoid

1шт.

3

1541197C2

SOLENOID

COIL - solenoid (Replaces coil 1541197C1)

2шт.

4

1541209C2

VALVE

ASSEMBLY - needle (Replaces valve assembly 1541209C1)

5шт.

1542833C1

SEAL KIT

KIT - seal, needle valve

1шт.

5

NSS

NOT SOLD SEPARAT

BALL - check, order valve assembly 1541273C2

6шт.

6

NSS

NOT SOLD SEPARAT

SPRING - check, order valve assembly 1541273C2

6шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - spring, order valve assembly 1541273C2

6шт.

8

1541200C2

VALVE

ASSEMBLY - pressure (Replaces valve assembly 1541200C1)

5шт.

S300972

SEAL KIT

KIT - seal

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 1541273C2

1шт.

10

S302100

NUT

- hex, special

2шт.

9625178

PLUG,9/16" - 18 ORB

5шт.

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

REF

INSTRUCTION

VALVE ASSEMBLY - motor control, two station add-on, parts list page 8-39B

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
