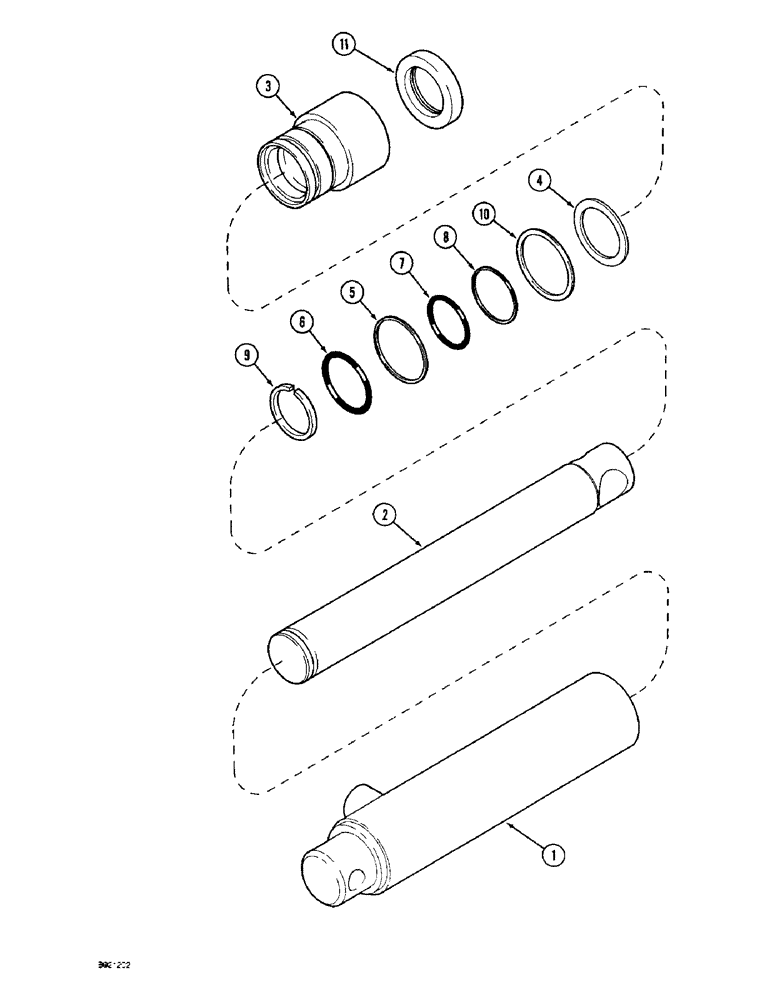

Запчасти Case IH 1800 (8-36) - BRUSH UNIT LIFT CYLINDER (07) - HYDRAULICS

142417C93

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, brush unit lift

4шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 142417C93

1шт.

2

142421C1

PISTON ROD

ROD - piston

1шт.

3

57018C2

JACK HEAD

GLAND - cylinder

1шт.

389270R92

SEAL KIT

KIT - seal

1шт.

4

383770R1

WASHER

WIPER - piston rod, felt

1шт.

5

383771R1

SEALING WASHER

RETAINER - wiper

1шт.

6

238-6132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 6, 90 Duro

1шт.

7

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

8

388969R1

BACK-UP RING

RING - backup

1шт.

9

376821R1

RING, SNAP

RING - snap

1шт.

10

388968R1

ELECTRICAL WIRE

RING - retaining

1шт.

11

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

WIPER - seal, piston rod

1шт.
