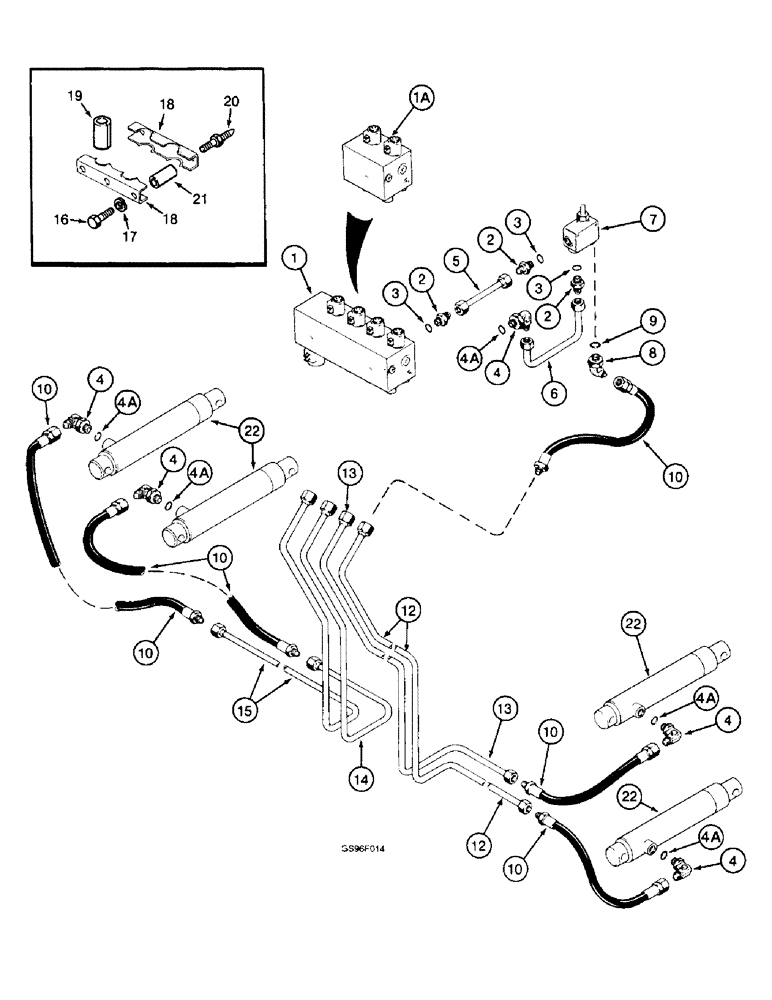

Запчасти Case IH 1800 (8-34) - HEIGHT CONTROL VALVES AND BRUSH UNIT LIFT SYSTEM (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - height control, parts list page 8-31
1шт.
1a
1541275C1
VALVE
ASSEMBLY - height control add-on, used with six row harvester, parts list page 8-31B
1шт.
2
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
ADAPTER - straight, 3/4-16 inch flare x O-ring boss
12шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
11шт.
4
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 3/4-16 inch flare x adjustable O-ring boss
5шт.
4a
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
5шт.
5
1541191C1
TUBE
- valve return
4шт.
6
1541260C1
TUBE
- valve supply
4шт.
7
REF
INSTRUCTION
VALVE ASSEMBLY - height control, parts list page 8-33
4шт.
8
218-5146
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
- 45 degree, 3/4-16 flare x 7/8-14 inch adjustable O-ring boss
4шт.
9
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
10
1541248C1
HOSE
- hydraulic
8шт.
1998987C1
TUBE - height control, unit No. 6
1шт.
1998988C1
TUBE - height control, unit No. 5
1шт.
12
1541195C1
TUBE
- height control, unit No. 4
1шт.
13
1541194C1
TUBE
- height control, unit No. 3
1шт.
14
1541193C1
TUBE
- height control, unit No. 2
1шт.
15
1541192C1
TUBE
- height control, unit No. 1
1шт.
1541250C1
MOUNTING CLIP
CLAMP ASSEMBLY - tube
7шт.
16
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
2шт.
18
1541283C1
MOUNTING CLIP
CLAMP - tube, half of two piece unit
2шт.
19
1541280C1
RING
BUSHING - clamp
2шт.
20
1541284C1
ADAPTER
- self-tapping
2шт.
21
1541281C1
SPACER
NUT - special, socket head stacking
2шт.
22
REF
INSTRUCTION
CYLINDER ASSEMBLY - lift, parts list page 8-37
4шт.
Выбрано товаров: 26
