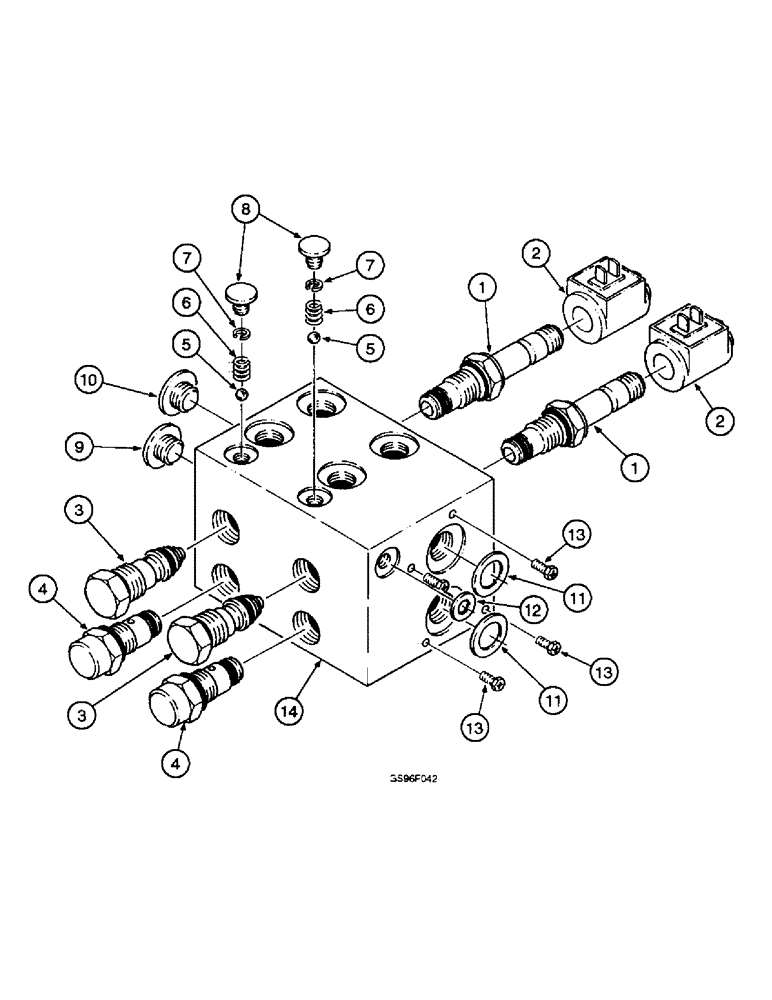

Запчасти Case IH 1800 (8-31A) - HEADER HEIGHT CONTROL ADD-ON MODULE TWO STATION (07) - HYDRAULICS

1541275C1

VALVE

ASSEMBLY - header height control add-on, two station, used with six row harvester

1шт.

1

1541207C1

SOLENOID

VALVE - solenoid

2шт.

2

1541198C1

COIL - solenoid valve

2шт.

3

1541206C1

VALVE, CHECK

VALVE - check

2шт.

4

1541205C1

VALVE

REGULATOR - flow

2шт.

5

1541220C1

BALL - check

2шт.

6

1541221C1

SPRING - check

2шт.

7

1541222C1

RETAINER - spring

2шт.

8

1541213C1

PLUG - flush head

3шт.

9

1541214C1

PLUG - flush head

1шт.

10

1541215C1

PLUG - flush head

1шт.

11

1541276C1

SEAL - O-ring

2шт.

12

1541277C1

SEAL - O-ring

1шт.

13

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

- hex, 5/16 NC x 6 inch

4шт.

14

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly

1шт.
