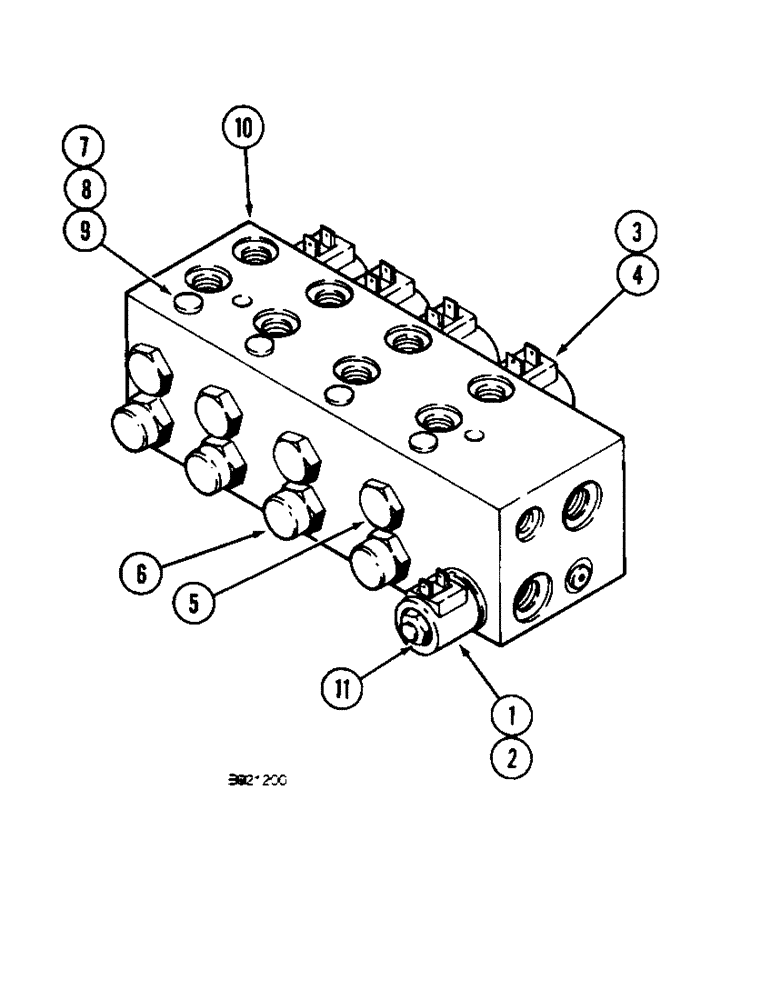

Запчасти Case IH 1800 (8-30) - HEADER HEIGHT CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

1541223C1

VALVE

ASSEMBLY - height control

1шт.

1

1541203C1

VALVE

ASSEMBLY - solenoid

1шт.

1542830C1

SEAL PACKAGE

KIT - seal, solenoid

1шт.

2

1541202C2

SOLENOID

COIL - solenoid (Replaces coil 1541202C1)

1шт.

3

1541207C1

SOLENOID

VALVE ASSEMBLY - solenoid

4шт.

1542831C1

SEAL KIT

KIT - seal, solenoid

1шт.

4

1541197C2

SOLENOID

COIL - solenoid (Replaces coil 1541197C1)

4шт.

5

1541206C1

VALVE, CHECK

VALVE - check

4шт.

1542830C1

SEAL PACKAGE

KIT - seal (Replaces kit 1542832C1)

1шт.

6

1541205C1

VALVE

ASSEMBLY - flow control

4шт.

1542833C1

SEAL KIT

KIT - seal, flow control valve

1шт.

7

NSS

NOT SOLD SEPARAT

BALL - check, order valve assembly 1541223C1

4шт.

8

NSS

NOT SOLD SEPARAT

SPRING - check, order valve assembly 1541223C1

4шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - spring, order valve assembly 1541223C1

4шт.

10

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 1541223C1

1шт.

11

S302100

NUT

- hex, special

5шт.

278548

PLUG,Hex, 7/16"-20 ORB

5шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

9625178

PLUG,9/16" - 18 ORB

2шт.

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

REF

INSTRUCTION

VALVE ASSEMBLY - height control two station add-on module, used with six row harvester, parts list page 8-31B

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
