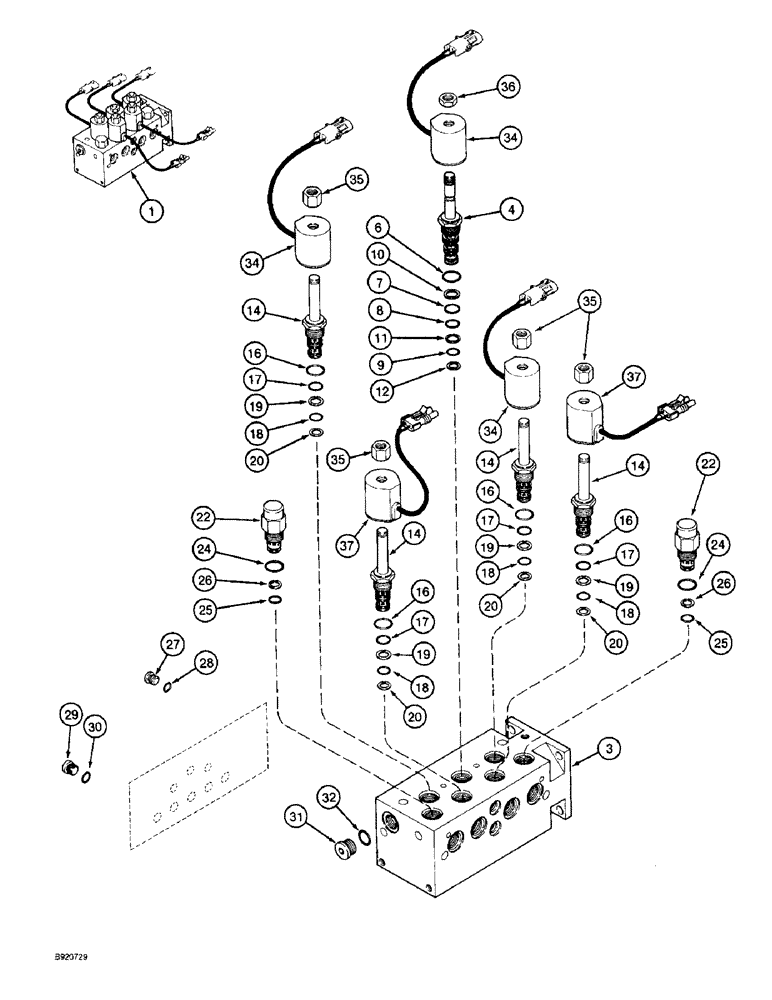

Запчасти Case IH 1800 (8-28) - CLUTCH AND HEADER LIFT VALVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1340842C1
VALVE
ASSEMBLY - clutch and drum lift
1шт.
3
NSS
NOT SOLD SEPARAT
BODY - valve, order valve assembly 1340842C1
1шт.
187849C1
SOLENOID VALVE
VALVE - solenoid, 4-way, cartridge only
1шт.
4
NSS
NOT SOLD SEPARAT
VALVE - four way solenoid
1шт.
187850C1
SEAL KIT
KIT - seal replacement
1шт.
6
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
7
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
8
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
10
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
1шт.
11
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
1шт.
12
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
1шт.
1288958C1
VALVE
- three-way solenoid
4шт.
14
NSS
NOT SOLD SEPARAT
VALVE - three way solenoid
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
19
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
1шт.
20
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
1шт.
1346479C1
VALVE
- flow control
2шт.
22
NSS
NOT SOLD SEPARAT
VALVE - flow control
1шт.
1272308C1
SEAL KIT
KIT - seal
1шт.
24
NSS
NOT SOLD SEPARAT
O-RING - flow control valve
1шт.
25
NSS
NOT SOLD SEPARAT
O-RING - flow control valve
1шт.
26
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup
1шт.
27
278548
PLUG,Hex, 7/16"-20 ORB
3шт.
28
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
3шт.
29
87035062
PLUG,Hex, 1/2"-20 ORB
(Replaces plug 92725C1) Hex Soc, 1/2"-20 ORB
5шт.
31
71100209
PLUG,Hex Soc, 3/4"-16 ORB
1шт.
32
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
34
1340843C1
SOLENOID,12V
KIT - solenoid coil, 12 volt
3шт.
35
1288967C1
NUT
- solenoid special
4шт.
36
218-1253
BHD LOCK NUT,Blkhd, 1/2"-20
NUT - bulkhead union lock, 5/16 inch NF (Replaces nut 9403292)
1шт.
37
1341807C1
SOLENOID
KIT - solenoid coil, 10 volt
2шт.
30
237-6005
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
5-1, 90 Duro, .414" ID x .072" Thk
5шт.
Выбрано товаров: 36
