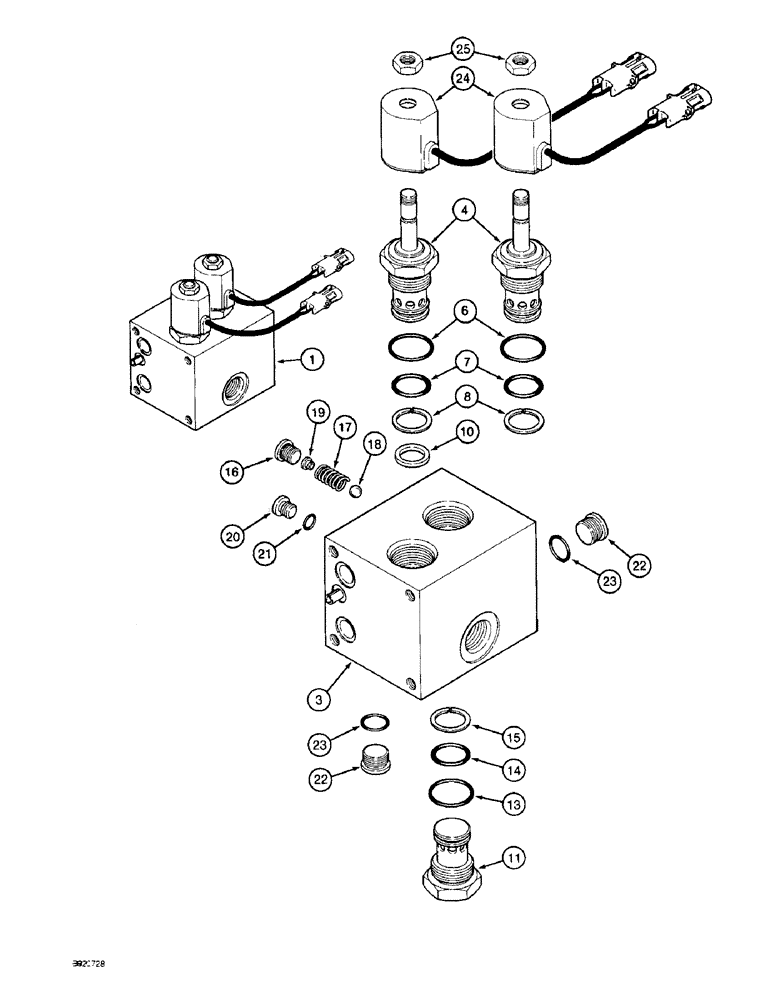

Запчасти Case IH 1800 (8-26) - BASKET LIFT VALVE (07) - HYDRAULICS

1340841C1

VALVE

ASSEMBLY - basket lift

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 1340841C1

1шт.

4

1288953C1

VALVE

ASSEMBLY - two-way solenoid

2шт.

1288954C1

SEAL KIT

KIT - seal replacement

2шт.

6

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

10

1288961C1

LARGE PLATE

PLATE - orifice

1шт.

11

1288955C1

VALVE

- check

1шт.

1288954C1

SEAL KIT

KIT - seal replacement

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - check valve

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - check valve

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

1341811C1

SPRING-CHECK

KIT - sense check

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG - valve sense

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - valve sense

1шт.

18

NSS

NOT SOLD SEPARAT

BALL - valve sense

1шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - valve sense

1шт.

20

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

22

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

24

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt

2шт.

25

218-1253

BHD LOCK NUT,Blkhd, 1/2"-20

NUT - bulkhead union lock, 5/16 inch NF (Replaces nut 9403292)

2шт.
