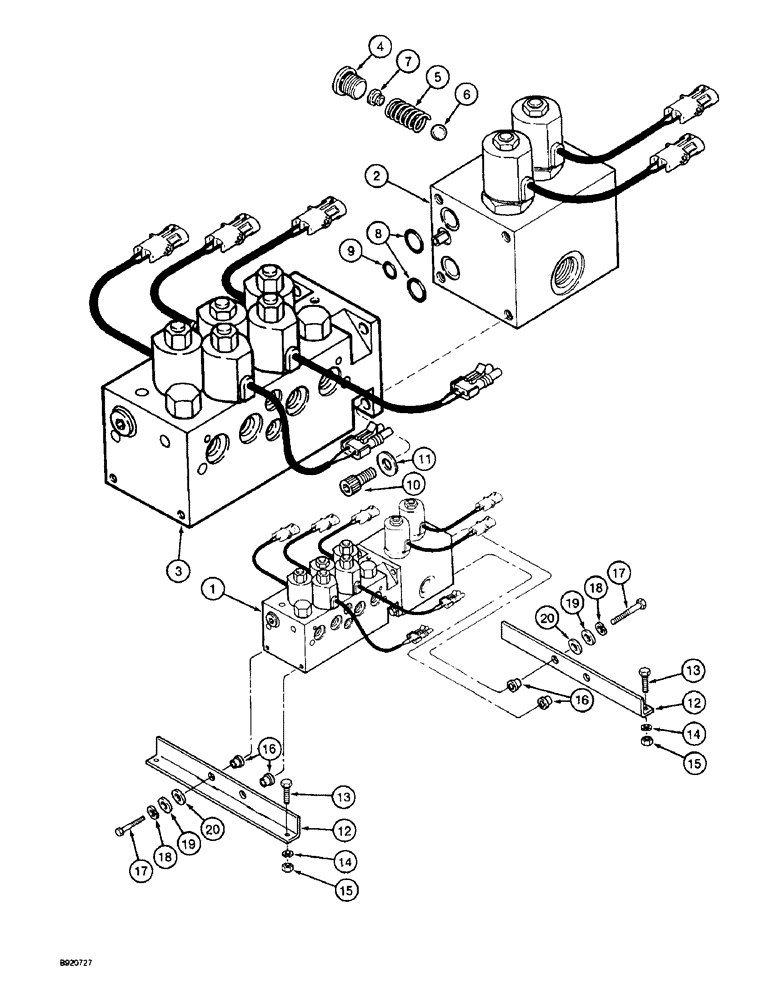

Запчасти Case IH 1800 (8-24) - MANIFOLD VALVE AND MOUNTING (07) - HYDRAULICS

1

1340837C2

VALVE

ASSEMBLY - manifold

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - basket lift, parts list page 8-27

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - clutch and header lift, parts list page 8-29

1шт.

1341811C1

SPRING-CHECK

KIT - sense check

5шт.

4

NSS

NOT SOLD SEPARAT

PLUG - check sense, order kit 1341811C1

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - check sense, order kit 1341811C1

1шт.

6

NSS

NOT SOLD SEPARAT

BALL - check sense, order kit 1341811C1

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - check sense, order kit 1341811C1

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

61-33814

HEX SOC SCREW,3/8" - 16 x 7/8"

BOLT - hex socket, 3/8 NC x 7/8 inch

4шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

12

1282489C2

SUPPORT

BRACKET - manifold valve mounting

2шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

425-106

NUT,3/8"-16, Cl 5

4шт.

16

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

4шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

4шт.

20

95-81051

WASHER,19.84mm ID x 31.75mm OD x 3.81mm Thk

- flat, 25/32 x 1-1/4 x 1/8 inch

4шт.
