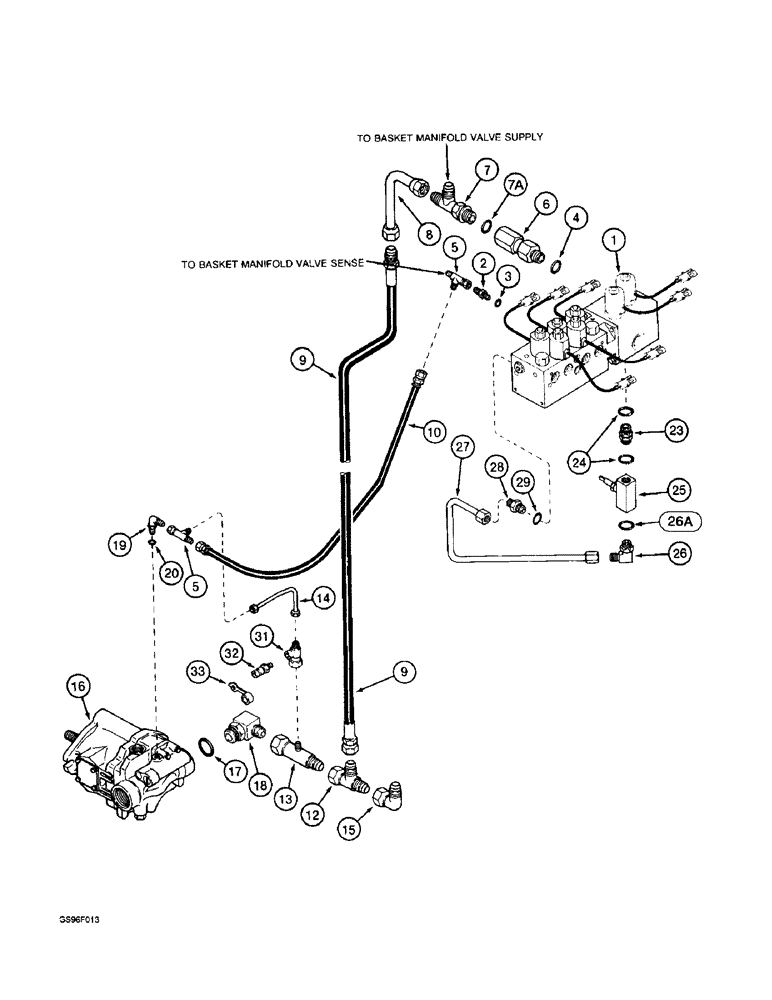

Запчасти Case IH 1800 (8-20) - MANIFOLD VALVE SUPPLY AND PRESSURE COMPENSATOR (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - manifold, parts list page 8-25

1шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 inch thread x O-ring boss

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x flare x swivel

2шт.

6

1272346C1

FILTER

- inline, part number stamped on part

1шт.

6

93306C2

FILTER

- inline, part number stamped on part

1шт.

7

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch flare branch x flare x adjustable O-ring boss

1шт.

7a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

1285294C2

TUBE,0.75" OD, 152.4,82.5 mm Length

- valve supply, used with filter 1272346C1

1шт.

8

1971410C1

HYD TUBE,0.75" OD

TUBE - valve supply, used with filter 93306C2

1шт.

9

D42600

HOSE

- pump pressure (Replaces hose 1282496C1)

1шт.

10

1976930C1

HOSE

- valve sense

1шт.

12

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

13

1980257C2

TEE

- orifice

1шт.

14

1976929C1

HYD TUBE

TUBE - supercharge

1шт.

15

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

16

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, parts list page 8-13

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

18

1980337C1

FITTING

ELBOW - reducer

1шт.

19

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adjustable O-ring boss

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

23

1261010C1

FITTING

ADAPTER - bypass tube

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

25

183510C1

VALVE

- needle (Replaces valve 1976897C1)

1шт.

26

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss

1шт.

26a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

1971745C1

HYD TUBE

TUBE - valve bypass

1шт.

28

218-5318

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 1/2-20 inch O-ring boss

1шт.

31

1978046C1

FITTING

TEE - adapter

1шт.

32

H434164

COUPLING

COUPLER - quick check

2шт.

33

H434163

DUST CAP

CAP - dust, coupler

2шт.

29

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
