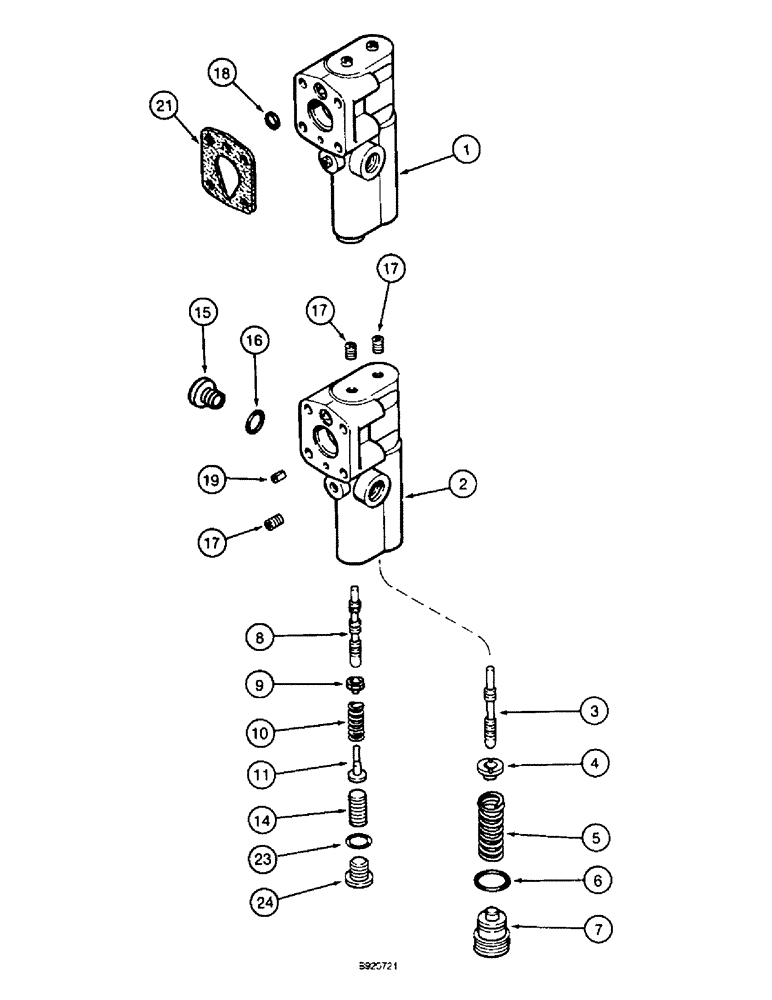

Запчасти Case IH 1800 (8-16) - HYDRAULIC PUMP, COMPENSATOR (07) - HYDRAULICS

1

1288981C1

EQUALIZER

COMPENSATOR ASSEMBLY - pump

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - compensator

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - pressure limiter

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT - pressure limiter spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - pressure limiter spool

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - pressure plug

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG - spool adjusting

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - load sensing

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - load sensing spool

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - load sensing spool

1шт.

11

NSS

NOT SOLD SEPARAT

SEAT - load sensing

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - set, load sensing

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - hex socket head, 7/16 inch NF

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - compensator

3шт.

18

NSS

NOT SOLD SEPARAT

O-RING - compensator

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - valve body

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - valve

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - hex socket

1шт.

1263244C2

PACKAGE

KIT - O-ring, seal and gasket, also includes items shown on pages 8-13 and 8-15

1шт.
