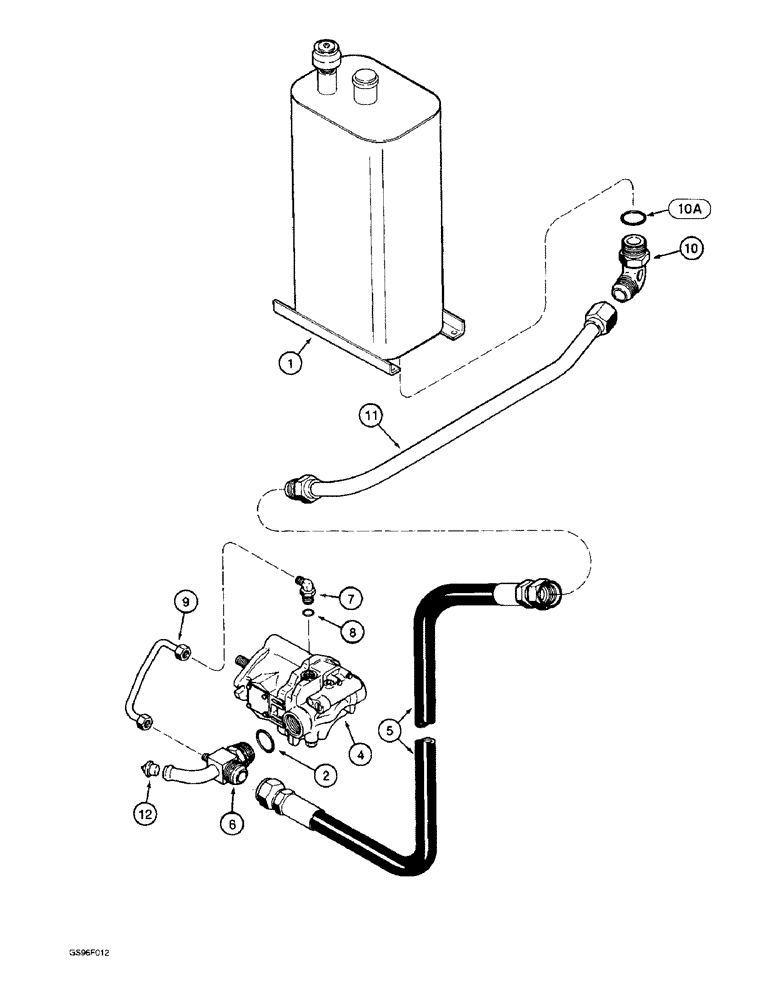

Запчасти Case IH 1800 (8-10) - RESERVOIR TO HYDRAULIC PUMP (07) - HYDRAULICS

1

1272252C93

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic, parts list page 8-3

1шт.

2

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

4

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, parts list page 8-13

1шт.

5

1285365C1

HYDRAULIC HOSE,38.10 mm ID x 1905.00 mm

1285365C1 - Pump supply

1шт.

6

1971747C1

FITTING

- cross, special, models P.I.N. JJC133070 and after, also order plug 1541336C1, item 12

1шт.

7

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16-18 flare x 7/8-14 inch adjustable O-ring boss

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

1285441C3

TUBE,0.375" OD, 164.9,50.8 mm Length

- case drain

1шт.

10

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree, 1-7/8-12 inch flare x adjustable O-ring boss

1шт.

10a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1-23/32 ID x 1/8 inch wide

1шт.

11

1285472C2

HYD TUBE

TUBE - pump supply

1шт.

12

1541336C1

PLUG

- special, used to plug tobe on fitting 1971747C1, item 6, models P.I.N. JJC133070 and after

1шт.
