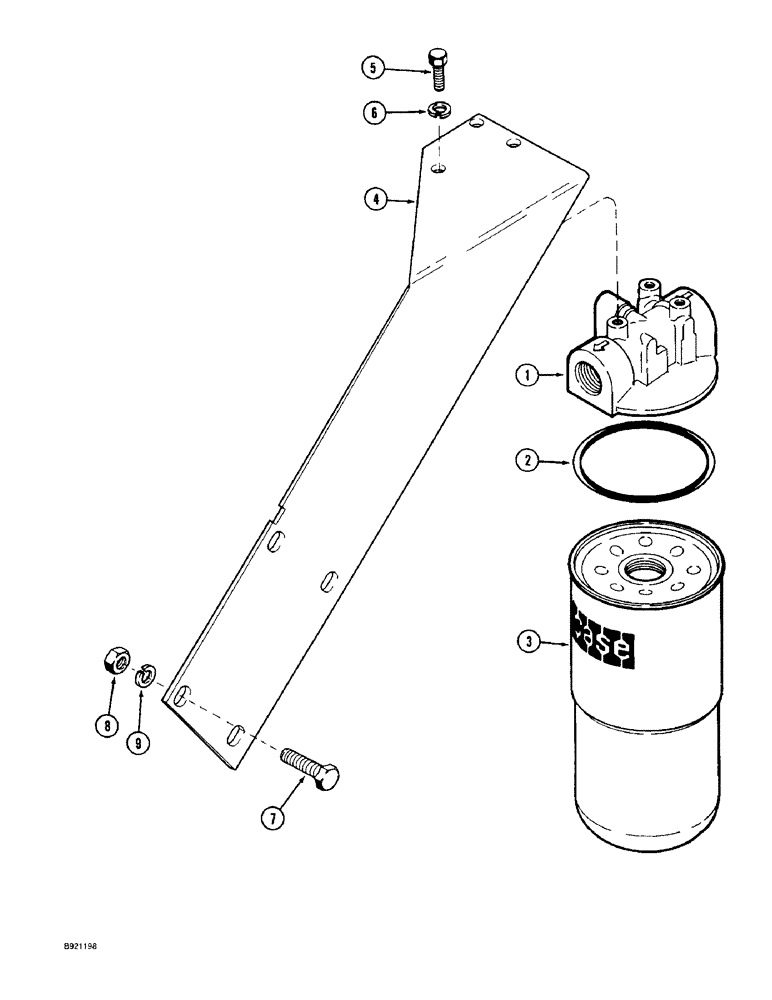

Запчасти Case IH 1800 (8-08) - HYDRAULIC FILTER, HEADER AUXILIARY (07) - HYDRAULICS

87784C91

FILTER ASSY

FILTER ASSEMBLY - header auxiliary

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter, order filter assembly 87784C91

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - filter element

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter (See Note)

2шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element, round

2шт.

3

123010C2

GASKET

- filter element, square

2шт.

4

1999026C1

SUPPORT

BRACKET - filter

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

6

492-11038

LOCK WASHER,3/8"

3шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.
