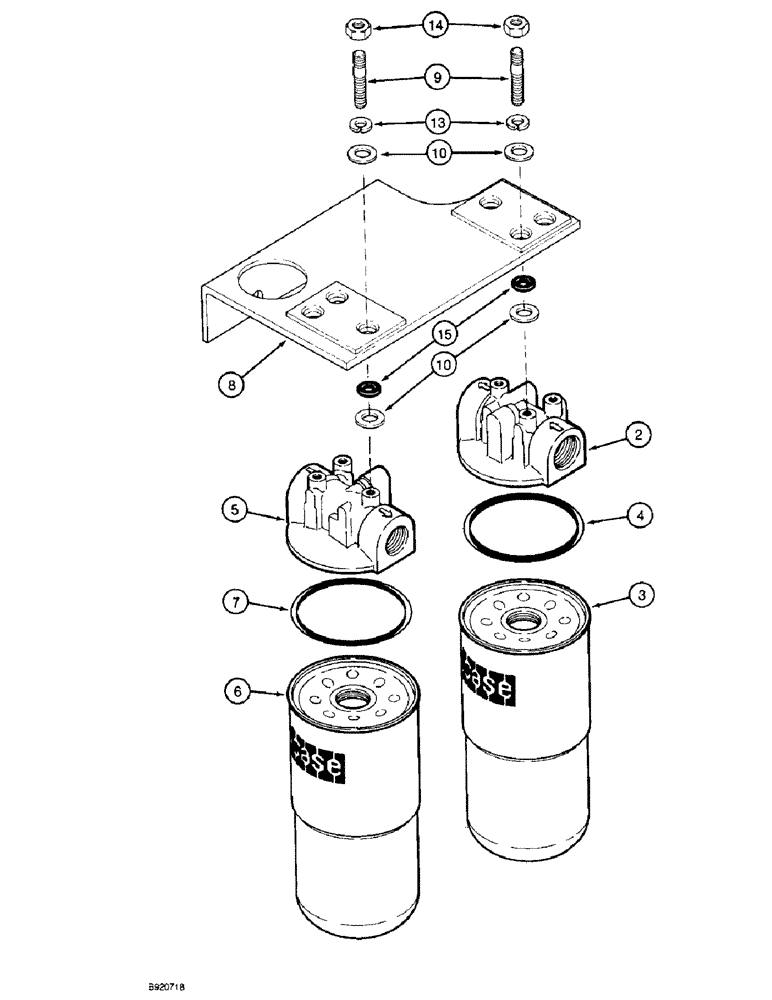

Запчасти Case IH 1800 (8-06) - HYDRAULIC FILTERS, AUXILIARY RETURN AND SUCTION, PRIOR TO P.I.N. JJC133070 (07) - HYDRAULICS

87784C91

FILTER ASSY

FILTER ASSEMBLY - auxiliary return

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter, order filter assembly 87784C91

1шт.

3

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter (See Note)

1шт.

See Figure Note.

1шт.

4

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element, round

1шт.

See Figure Note.

1шт.

4

123010C2

GASKET

- filter element, square

1шт.

See Figure Note.

1шт.

87785C91

FILTER ASSY

FILTER ASSEMBLY - hydro suction

1шт.

5

NSS

NOT SOLD SEPARAT

HEAD - filter, order filter assembly 87785C91

1шт.

6

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter (See Note)

1шт.

See Figure Note.

1шт.

7

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element, round

1шт.

See Figure Note.

1шт.

7

123010C2

GASKET

- filter element, square

1шт.

See Figure Note.

1шт.

8

1984024C1

SUPPORT

BRACKET - filter

1шт.

9

1345440C1

STUD

- filter mounting

6шт.

10

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

12шт.

13

492-11038

LOCK WASHER,3/8"

6шт.

14

425-106

NUT,3/8"-16, Cl 5

6шт.

15

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

6шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - filter element

1шт.

See Figure Note.

1шт.
